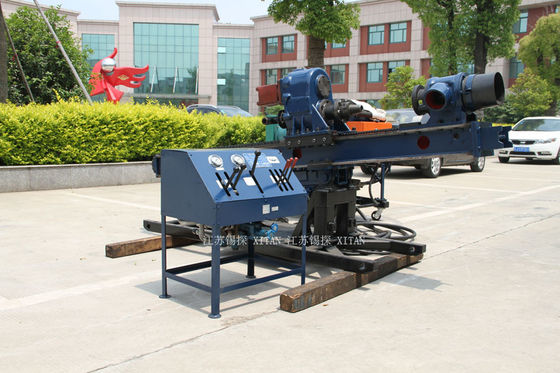

Small size anchor drilling rig MD - 50

Small size anchor drilling rig MD - 50
Small size anchor drilling rig MD - 50 Small size anchor drilling rig MD - 50 Small size anchor drilling rig MD - 50 Small size anchor drilling rig MD - 50 Small size anchor drilling rig MD - 50 Small size anchor drilling rig MD - 50

Large Image :  Small size anchor drilling rig MD - 50

Product Details:

Place of Origin: Jiangsu,China
Brand Name: xitan
Certification: ISO9001:2008
Model Number: MD-50

Payment & Shipping Terms:

Minimum Order Quantity: 1Set/Sets
Price: Contact us
Packaging Details: In 40′container with drilling tools
Delivery Time: One week
Payment Terms: T/T,L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: Ten sets per month
Detailed Product Description
Type: Anchor Rig System: Hydraulic
Hole Depth: 50-60m Hole Diameter: 110-180mm
Ways: Water/DTH Hammer Weight: 1200KG
High Light:

surface drilling rig

,

anchor drilling machine

MD-50A skid mounted anchor drilling rig



Description:



1. MD-50 drilling rig is a kind of full hydraulic power head drilling rig.

2. It is applied to drill heavy duty anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used to drill high-pressure jet grouting holes.

3. This drilling can be carried out with low manchine weights and in difficult and dangerous on site conditions.

4. The rig is suitable for various drilling methods such as carbide bit drilling, auger drilling, DTH hammer drilling, follow-up casing drilling, etc.





Specifications:



Hole depth 50-60m
Rod dia 110-180mm
Hole angle(°) -10-90°
Output rotary speed of power head Forward: 20/40/56/111/167r/min
Reverse: 20/40/56/111/167r/min
Stroke of power head 1700mm
Output torque of power head 2500N.m
Lifting force of power head 25KN
Feeding force of power head 17kN
Power Electric motor: 18.5KW
Weight 1200KG
Dimensions (L×W×H) 2978×700×1205mm





Applications:



1. Anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc.

2. It is also used to drill high-pressure jet grouting holes.





 Competitive Advantage:



 Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-  drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present,  the products has been exported to Southeast Africa, Asia and other global markets.

Small size anchor drilling rig MD - 50 0

Small size anchor drilling rig MD - 50 1


 Small size anchor drilling rig MD - 50 2
