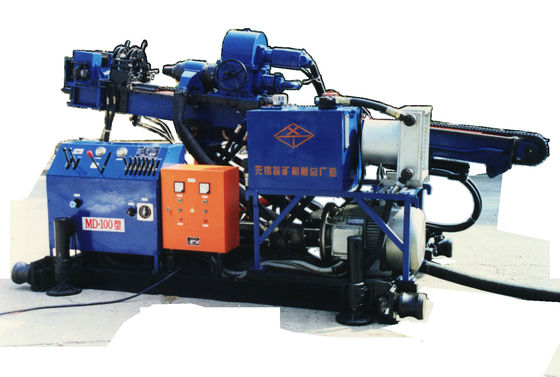

MD-100A Mining Exploration Skid Mounted Anchor Drilling Rig / Dth Drilling Machine

MD-100A Mining Exploration Skid Mounted Anchor Drilling Rig / Dth Drilling Machine
MD-100A Mining Exploration Skid Mounted Anchor Drilling Rig / Dth Drilling Machine MD-100A Mining Exploration Skid Mounted Anchor Drilling Rig / Dth Drilling Machine

Large Image :  MD-100A Mining Exploration Skid Mounted Anchor Drilling Rig / Dth Drilling Machine

Product Details:

Place of Origin: Jiangsu,China
Brand Name: xitan
Certification: ISO9001:2008
Model Number: MD-100A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set/Sets
Price: Contact us
Packaging Details: In 20′container with drilling tools
Delivery Time: One week
Payment Terms: T/T,L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Five sets per month
Detailed Product Description
Type: Anchor Rig System: Hydraulic
Hole Depth: 100-120m Hole Diameter: 110-250mm
Ways: Water/DTH Hammer Weight: 3000KG
High Light:

surface drilling rig

,

anchor drilling equipment

MD-100A skid mounted anchor drilling rig




Description:



1. MD-100 drilling rig is a kind of full hydraulic power head drilling rig.

2. It is applied to drill heavy duty anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used to drill high-pressure jet grouting holes.

3.This drilling can be carried out with low manchine weights and in difficult and dangerous on site conditions.

4. The rig is suitable for various drilling methods such as carbide bit drilling, auger drilling, DTH hammer drilling, follow-up casing drilling, etc.





Specifications:



Hole depth 60-120m

Rod dia



110-250mm



Hole angle(°)



-1-90°
Output rotary speed of power head 10,20,36,48,,75,100r/min

Stroke of power head 1800mm
Output torque of power head 5500N.m
Lifting force of power head 65KN
Feeding force of power head 33 kN
Power Electric motor: 37+1.5+0.25
Weight 3000KG
Dimensions (L×W×H) 3400×650×1500mm





Applications:



Anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc.

It is also used to drill high-pressure jet grouting holes.





Competitive Advantage:



Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core- drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.






 MD-100A Mining Exploration Skid Mounted Anchor Drilling Rig / Dth Drilling Machine 0MD-100A Mining Exploration Skid Mounted Anchor Drilling Rig / Dth Drilling Machine 1
