XPL-25A Cement Grouting Procedure Jet Grouting Equipment 0 - 90° Hole Angle

XPL-25A Cement Grouting Procedure Jet Grouting Equipment 0 - 90° Hole Angle
XPL-25A Cement Grouting Procedure Jet Grouting Equipment 0 - 90° Hole Angle XPL-25A Cement Grouting Procedure Jet Grouting Equipment 0 - 90° Hole Angle XPL-25A Cement Grouting Procedure Jet Grouting Equipment 0 - 90° Hole Angle XPL-25A Cement Grouting Procedure Jet Grouting Equipment 0 - 90° Hole Angle XPL-25A Cement Grouting Procedure Jet Grouting Equipment 0 - 90° Hole Angle XPL-25A Cement Grouting Procedure Jet Grouting Equipment 0 - 90° Hole Angle XPL-25A Cement Grouting Procedure Jet Grouting Equipment 0 - 90° Hole Angle

Large Image :  XPL-25A Cement Grouting Procedure Jet Grouting Equipment 0 - 90° Hole Angle

Product Details:

Place of Origin: Jiangsu,China
Brand Name: xitan
Certification: ISO9001:2008
Model Number: XPL-25A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set/Sets
Price: Contact us
Packaging Details: In 40′container with drilling tools
Delivery Time: One week
Payment Terms: T/T,L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: Five sets per month
Detailed Product Description
Type: Jet Grouting Rig Torque: 3500N.m
Wide Range: Jet Grout/anchor Stroke: 2300mm
Application: Soft Base Ground Reinforcement Constrcution Weight: 3600KG
High Light:

rock drilling equipment

,

land drilling rig

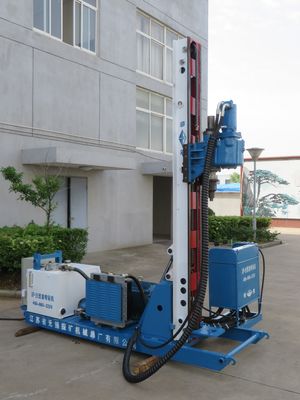

                                               XPL-25A JET GROUTING DRILLING RIG




Description:


1. XPL-25A serial low loading jet-grouting drill is a dual-duty drill manufactured by Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. in compliance with the market demand, and it is applicable for soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.
2. The drilling rig can apply singe pipe, duplex pipe, triple pipe tools and so on. Optional pendulum jetting device can be added to achieve the pendulum jet-grouting function.
3. The drilling rig has various chassis mode like skid mounted, crawler mounted.
4.  Applicable for wide range of processing except jet-grouting processing requirements, this machine may also apply in anchoring processing construction.


Applications:

1.For jet-grouting and anchoring
2.Soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.
3.Singe pipe, duplex pipe, triple pipe


Specifications:


Rotated jet

Aperture (mm)

Single: 400-600 Double: 600-1200

Triple: 800-1600





Anchoring



Hole depth (mm)

20-40

Aperture (mm)

Ф90-ф168

Hole depth (mm)

30-40

Hole angle(°)



0-90°

Output rotary speed of power head

0-6, 0-20 (without adjustable level) 6,20,40,50,120,150r/min

Output torque of power head

3500N.m

Unit head lifting force (kN)

25

Unit head plus-pressure (kN)

17

Lifting speed (m/min)

0-1.1(without adjustable level)

Plus-pressure speed (m/min)

1.5,9

Stroke of power head (mm)

1800(standard layout, the effective length of drill rod is 1500)

Motor power (kW)

30+1.5+0.15

Appearance of construction status

(length × width × height mm)

3000*2000*3050

Appearance of transportation status

 (length × width × height mm)

3000*2000*2100

Weight (kg)

About 3600




Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
