| Color: | Blue | Application: | Urban Subway, High Building, Airport, Geothermal And Other Deep Foundation Pit For Anchoring |
|---|---|---|---|
| Hole Depth: | 130-170m | Rod Diameter: | 150-250mm |
| Model: | MDL-150D | Output Torque Of Power Head: | 7500N.m |
| High Light: | surface drilling rig,anchor drilling machine |
||

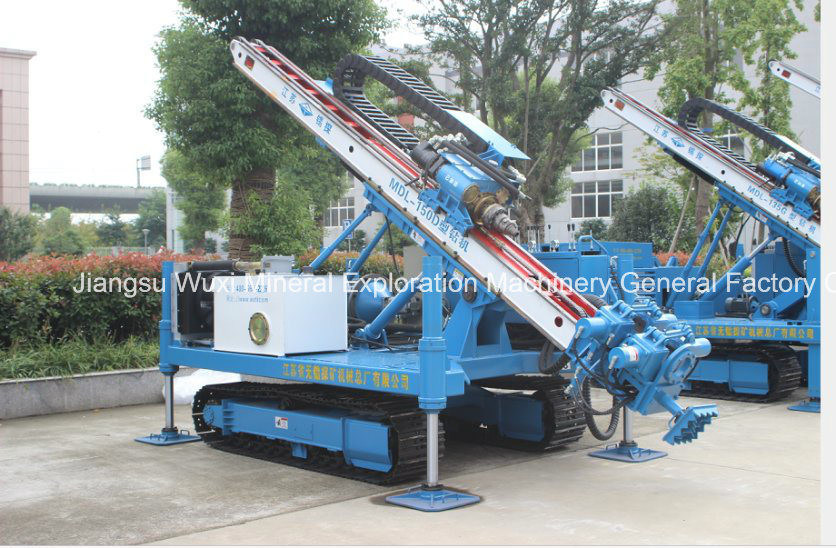

MDL-150D Crawler Mounted Anchor Drilling Rig
Quick Detail:
1.This 150D is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170m, and drilling diameter 150-250mm.
2.According to the customer's requirements, the torque and rotate speed can be adjusted to achieve best efficiency. The speed of this drill rig can achieve 170 circles every minute. It is increased by 20% compared with that kind of 135D.
3.The 150D anchor crawler drilling rig can do single, double and triple jet grouting.
4.The 150D anchor crawler drilling rig is just applied to the rock and broken layer construction.
Description:
1.This 150D is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170m, and drilling diameter 150-250mm.
2.The crawler drill rig is mainly applied to urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring, jet grouting and dewatering.
3.In addition, this 150D anchor crawler drilling rig is stable, efficient , and able to drill complex layers and deal with accidents.
4.The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.
5.The 150D anchor crawler drilling rig is just applied to the rock and broken layer construction.
Specifications:
| Hole depth | 170-130m | |
| Rod dia |
150-250mm |
|
|
Hole angle(°) |
0-90° | |
| Output rotary speed of power head | 10/20/30/35/40/60/65/70/85/130/170r/min | |
| Stroke of power head | 3400mm | |
| Output torque of power head | 7500N.m | |
| Stroke of slide frame | 900mm | |
| Lifting force of power head | 70KN | |
| Feeding force of power head | 36kN | |
| Power | Electric motor: | 55+18.5KW |
| Weight | 6000KG | |
| Dimensions (L×W×H) | 5400×2100×2000mm | |
Applications:
1. Urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring.
2. Jet grouting and dewatering.
3. This engineering drill rig can be used for drilling geothermal hole and well.
4. The blast hole,the anti-floating anchoring hole .
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
