|Model:||QY-100L||Application:||Soil And Groundwater Sampling And Repairing And Water Well Drill|
|High Torque:||5600N·m||Low Torque:||1800N·m|
|Impact Frequency:||1900bpm||Impact Power:||12kW|
|Weight:||6000kg||Name:||Water Well Drilling Machine|
surface drilling rig,
anchor drilling machine

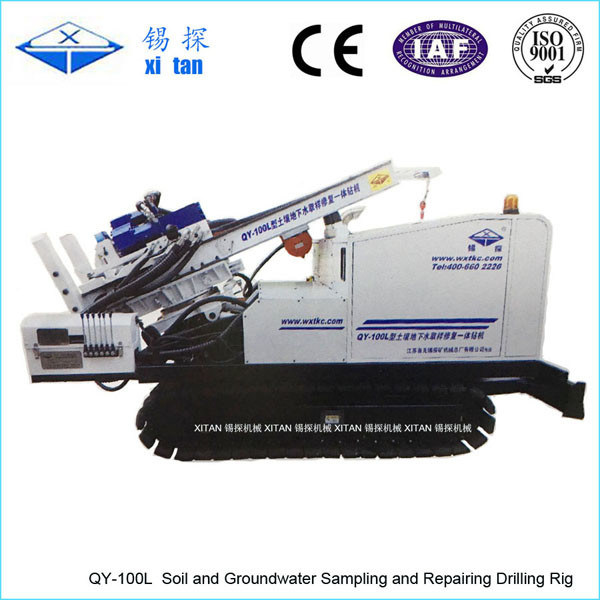

Enviroment Protecting and Water Well Drilling Machine QY - 100L
|Power head performance|
|Rotation power head:|
|Output mode,inner hexagon||∅69x65|
|Impact power head:|
|Power head lifting force||260kN|
|Power head propelling force||185kN|
|Power head stroke||2000mm|
|Carring capacity of rear hanging||1200kg|
|Front and back slipping of machine frame||450mm|
|Tower election angle||25°-100°|
|Derrick inclination angle||-15°-15°|
|Height of work||4800mm|
|Ground specific pressure||0.36kg/cm²|
|Rated power||93Kw@ 1800rpm|
|Hydraulic hoist lifting force||1.2T|
|Hydraulic hoist speed||0-30m/min|
Integrated power head with impact and rotation
Three motors provide enough torque in parallel, and high power impact hammer ensures quick entry effect.
Power head carriage can be moved horizontally
The transverse structure can fully move away from the position of the orifice, so that the drill pipe can be quickly lifted by hoist without moving the drill rig.
Self reset crown block structure
When the crane lifts, it automatically swings to the center of the orifice, and automatically resets when it falls, thus completely eliminating the possibility of misoperation.
Opening and closing control cabinet
Compact structure, instrument and button built-in, safe and convenient.
Wireless remote control and hydraulic control operation
Wireless remote control walking, safe and convenient, active hydraulic control handle operation, light and delicate.
Double oil cylinder rear hanger
Double oil cylinder lifting structure,the lifting force is large and stable.
The rack can slide before and after, and the derrick can be tilted to the left and right,slide up and down to meet the construction needs of various terrain.
Load sensitive electro-hydraulic proportional hydraulic system, energy saving and high efficiency
1.Soil and groundwater sampling and repairing.
2.Drill water well.
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
