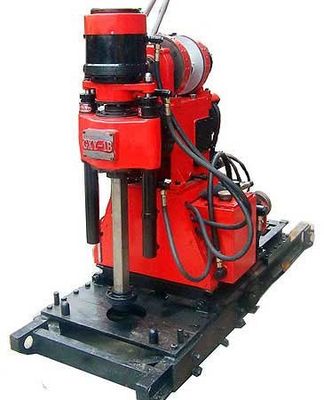

GXY-1B 200m Depth Exploration Drilling Rig , Tunnel Drilling Machine
1. GXY-1B drilling rig, the improved product based on GXY-1 drill rig. Low rotary speed and big torque are utilized for rig exploration, blast hole drilling, core drilling and inspect hole of concrete.
2. The rig is light and easy to disassemble. It is composed of 9 components with the largest weighting 100Kg so it is easy to relocate and operate in mountain areas.
3. The rig and mud pump are motivated respectively.
4. By using hydraulic chuck, it is in strong and steady clamping force. By using the hydraulic fed, the drilling rig can move back directly.
1. GXY-1B is a vertical type drill. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, inspect hole of various concrete structure, etc.
2. According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.
3. The rig is light and easy to disassemble. It is composed of 9 components with the largest weighting 100Kg so it is easy to relocate and operate in mountain areas.
4. The drill is convenient for maintenance and repair for simple structure and reasonable layout.
5. By using hydraulic chuck, It is in strong and steady clamping force. By using the hydraulic fed, the drilling rig can move back directly.
|Spindle speed||Forward speed:61;163;338;654 rpm|
|Reverse speed:45 rpm|
|Stroke of spindle||500mm|
|Max .lifting capacity||25KN|
|Max .feeding capacity||20KN|
|Max .distance from the spindle lower to the earth surface||600mm|
|Hoist||Max .lifting capacity||15KN|
|Lifting speed:||0.22/0.95/1.95/5.3 m/s|
|Power||Electric motor:||11kw,1500 rpm|
|Diesel engine||13kw,2200 rpm|
|Drilling rod clamping type||Hydraulic chuck type|
|Making-way type for hole collar||Fluid control of power head back shift|
1. Exploration prospecting.
2. Blast hole drilling.
3. Core drilling and inspect hole of concrete etc.
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
