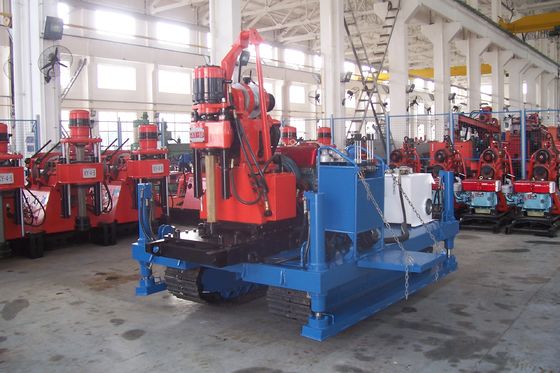

GXY-2L Hydraulic Chuck Crawler Drilling Rig Mechanical Drive Anti-vibration
Quick Detail:
1. There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2760 N·m .
2. Easy to master the hole condition with a long life anti-vibration meter.
3. It is convenient for you to treat trouble with two reverse speeds. It is convenient for clamping and loosing drill heave with hydraulic chuck.
4. This drilling rig has various chassis mode like skid mounted, crawler mounted.
Description:
1. Model GXY-2L drilling rig is a kind of spindle rotatory drilling rig. It was developed by Wuxi Mineral Exploration Machinery General Factory, Jiangsu Province. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, water discharge tunnel.
2. This drilling rig has various chassis mode like skid mounted, crawler mounted.
3. Light in weight, the rig can be disassembled easily, the biggest apparatus is in 200kg. The whole drill is in 1000kg, it can be moved easily especially in mountain area.
Specifications:
| Hole depth | 300-600m | |
| Rod dia | 42mm/50mm |
|
|
Hole angle(°)
|
360° | |
| Spindle speed | Forward speed:70;121;190;263;329;570;899;1241rpm | |
| Reverse speed:55/257rpm | ||
| Stroke of spindle | 600mm | |
| Max .lifting capacity | 25KN | |
| Max .feeding capacity | 20KN | |
|
Max .distance from the spindle lower to the earth surface
|
600mm | |
| Hoist |
Max .lifting capacity (single line): |
15KN |
| Lifting speed: | 0.2;0.52;1.05;2.06m/s | |
| Power | Electric motor: | 11kw,2200rpm |
| Diesel engine | S1100 or S1100M | |
| Weight | 500kg | |
| Dimensions (L×W×H) | 1450×970×1280mm | |
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
