GYQ-200 Exploring core mine for 200m Core drilling rig
Quick Detail:
1. Model GYQ-200 drilling rig is a kind of spindle rotatory drilling rig.
2. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, foundation pile construction.
3. It is also suitable for exploring core mine.
4. It is convenient for you to treat trouble with two reverse speeds. Easy to master the hole condition with a long life anti-vibration instrument.
5. There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2500 N·m .
Description:
1. Model GYQ-200 drilling rig is a kind of spindle rotatory drilling rig. With powerful drilling capacity, It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, foundation pile construction.
2. There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2500 N·m .
3. It is also suitable for exploring core mine.
4. It is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed.
Specifications:
| Hole depth | 200m | Rod dia | 42,50mm |
| Spindle speed | Forward speed:55;96;152;210;262;455;718;990rpm | ||
| Reverse speed:44;206rpm | |||
| Stroke of spindle | 500mm | ||
| Max .lifting capacity | 49KN | ||
| Max.torque of spindle |
2500N.m |
||
| Max .feeding capacity | 36KN | ||
| Hoist (Type: Planetary gearing transmission) | Steel Wire Cable Dia | 9.3 mm | |
|
Max .lifting capacity (single line): |
25KN | ||
| Lifting speed(the third layer): | 0.38;0.66;1.05;1.44m/s | ||
| Oil Pump | Type: Double Gear Pump | ||
| Retraction cylinder stroke : | 465mm | ||
| Distance between drill and hole | 330mm | ||
| Power | Electric motor: | Y160L-1 motor:15kw,1470rpm | |
| Diesel engine | 2100 Diesel:17.6KW,1800rpm;ZS1118M Diesel:16.2KW,2200rpm | ||
| Weight (less engine) | 800kg | ||
| Dimensions (L×W×H): | 1860×780×1460mm | ||
Applications:
1.Engineering geological exploration.
2.Exploring the coal mine.
3. Survey and exploration of solid mineral deposit.
4.Water discharge tunnel.
5.Inspecting hole of various concrete stucture.

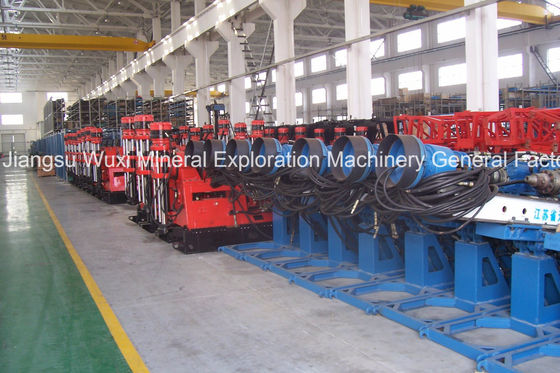

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
