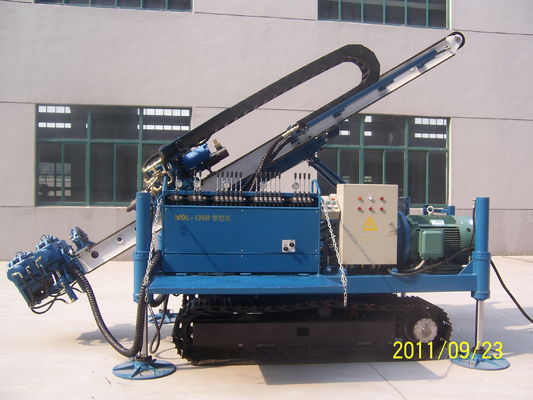

MDL-135D Great Torque Portable Drilling Rigs , Crawler Drilling Machines
Quick Detail:
1. MDL-135D drilling rig is a kind of full hydraulic power head crawler drilling rig. Its drilling depth is 100-140m, and drilling diameter150-250mm .
2. The great rotary torque and long feeding stroke distance of the drilling rig make the speed of borehole faster, the disposal capability of accident better and efficiency of drilling work higher.
3. The equipment is mounted on the crawler with the turning platform mechanism which makes the moving and walking more and more convenient.
4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.
Description:
1.MDL-135D drilling rig is a kind of full hydraulic power head crawler drilling rig. Its drilling depth is 100-140m, and drilling diameter150-250mm.
2.The drilling mainly for anchoring and jet-grouting, which is designed and produced by Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. It is mainly applied in drilling work of the anchoring hole of high buildings deep basement foundation, and also used in drilling the drain hole. It can be also used for foundation pit,the blast hole,the anti-floating anchoring hole .
3.The route of shaft bracket is 3.4 meters, so the 135D crawler anchor drilling rig can have complex rod & casing drill for 3 meters. The rig is applicable to rod boring, casing drilling and complex rod & casing drilling.
4.It can be used for jet grouting, which is applicable to single jet grouting, double jet grouting and triple jet grouting.
Specifications:
| Hole depth | 100-140m | |
| Rod dia |
150-250mm
|
|
|
Hole angle(°) |
0-90° | |
| Output rotary speed of power head | 10/20/25/40/50/60/70/100/120/140r/min | |
| Stroke of power head | 3400mm | |
| Output torque of power head | 6800N.m | |
| Stroke of slide frame | 900mm | |
| Lifting force of power head | 65KN | |
| Feeding force of power head | 33kN | |
| Power | Electric motor: | 55+18.5+2.2KW |
| Weight | 6000KG | |
| Dimensions (L×W×H) | 5400×2100×2000mm | |
Applications:
1.Urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring.
2.Jet grouting and dewatering.
3.This engineering drill rig can be used for drilling geothermal hole and well.
4.The blast hole,the anti-floating anchoring hole .
