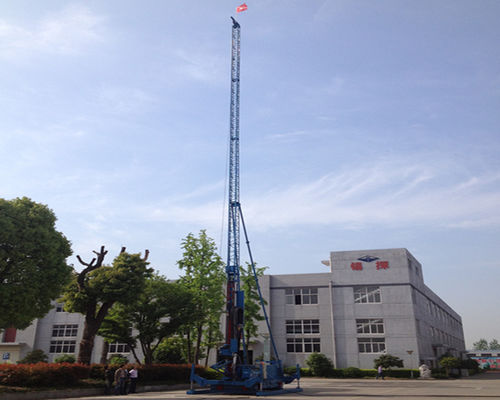

XPG-65 Big Torque Underground Drill Rigs 20m Assistant Tower Hydraulic Chuck Anchor Drill Rig Machine
Quick Detail:
1.XPG-65 drilling rig is one kind of full hydraulic power head drilling rig.
2.The assistant tower of XPG-65 jet grouting drill rig is high, which achieves 20 m,it can ruduce the time to add and wrench the tools.
3. Because of big torque, the depth of high pressure jet grouting drilling rig is deeper. Depending on big power, this rig can be applicable for more engineering construction.
4.The assistant tower can be made up of 4 parts,can be reached 5m,10m and 20m.
Description:
1.XPG-65 drilling rig can accomplish drilling hole and jet grouting process in once time when operating in some certain soft layer. During the jet grouting lifting, the depth of the rotary jet shall not exceed the height of the assistant tower (20m). There is no need to dismantle the drill rod.
2. With good adaptability, this jet grouting drilling rig can be configured with different modules and drilling tools, so as to solve various jet grouting processes.
3. Besides jet grouting process, this jet grouting drilling rig is available for the construction of anchoring technology.
4.Using the hydraulic chuck,it is easy to change the tools,do not need the joint.
5.The shifting and turning of the drill rig, speed change of power head and drill lifting are all adopted hydraulic control, featuring in flexible operation, saving time and labor cost.
6.The drill rigs adopt double winches and electrical control which can reduce labor force and enhance production efficiency.
Specifications:
| Specification | XPG-65 |
| Hole diameter(mm) | Φ150~Φ250 |
| Hole depth(m) | 150~180 |
| Rod diameter(mm) | Φ73,Φ89,Φ102,Φ114 |
| Jrt grouting | single,double,triple |
| Stake Diameter(mm) | 400-600,600-1200,800-1600 |
| A joint pipe | 7000,12000,17000,22000 |
| Hole angle(°) | 0~90 |
| Output rotary speed of power head (r/min) | 0~12,0~25,30,60,75,120,150 |
| Output torque of power head (N.m) | 5800 |
| Stroke of power head(mm) | 4000 |
| Stroke of Slide Frame(mm) | 1500 |
| Lifting force of power head (KN) | 66 |
| Lifting speed of power head (m/min) | 0~1.3/8/18/27 |
| Feeding force of power head (KN) | 34 |
| Feeding speed of power head(m/min) | 2.5 /16/36/53 m/min |
| Input power(electromotor) (KW) | 55+11+3 |
| Dimension(L×W×H) (mm) | 6385×2050×2550 |
| Construction(L×W×H) (mm) | 6385×3340×27530 |
| Weight(kg) | 8200 |
Applications:
1. For jet-grouting and anchoring
2. Soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.
3. Singe pipe, duplex pipe, triple pipe
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
