Crawler Anchor Drilling Rig Water Well Drilling

China Crawler Anchor Drilling Rig Water Well Drilling supplier
Crawler Anchor Drilling Rig Water Well Drilling supplier Crawler Anchor Drilling Rig Water Well Drilling supplier Crawler Anchor Drilling Rig Water Well Drilling supplier Crawler Anchor Drilling Rig Water Well Drilling supplier Crawler Anchor Drilling Rig Water Well Drilling supplier Crawler Anchor Drilling Rig Water Well Drilling supplier

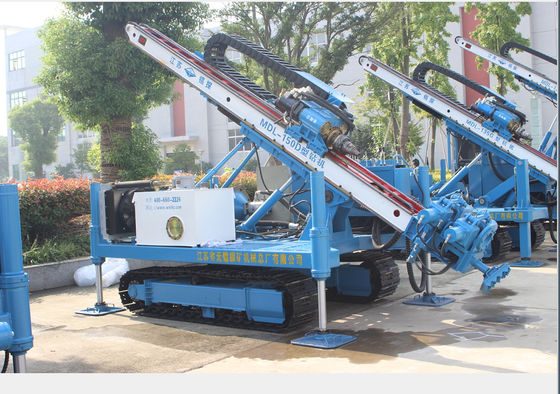

Large Image :  Crawler Anchor Drilling Rig Water Well Drilling

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Xitan
Certification: ISO9001:2008
Model Number: MDL-150D

Payment & Shipping Terms:

Minimum Order Quantity: 1Set / Sets
Price: Contact us
Packaging Details: In 40′container with drilling tools
Delivery Time: 15 days
Payment Terms: T/T,L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Color: Blue Application: Urban Subway, High Building, Airport, Geothermal And Other Deep Foundation Pit For Anchoring
Hole Depth: 130-170m Rod Diameter: 150-250mm



Crawler Mounted Anchoring Drilling Rig / Ground Drilling Machine


QUICK DETAIL:
1. This 150D is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170m, and drilling diameter 150-250mm.
2. According to the customer's requirements, the torque and rotate speed can be adjusted to achieve best efficiency. The speed of this drill rig can achieve 170 circles every minute. It is increased by 20% compared with that kind of 135D.
3. The 150D anchor crawler drilling rig can do single, double and triple jet grouting.
4. The 150D anchor crawler drilling rig is just applied to the rock and broken layer construction.


Description:

1. This 150D is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170m, and drilling diameter 150-250mm.
2. The crawler drill rig is mainly applied to urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring, jet grouting and dewatering.
3. In addition, this 150D anchor crawler drilling rig is stable, efficient , and able to drill complex layers and deal with accidents.
4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.
5. The 150D anchor crawler drilling rig is just applied to the rock and broken layer construction.


Applications:



1. Urban subway, high building, airport, geothermal and other deep foundation pit for anchoring.
2. Jet grouting and dewatering.
3. This engineering drill rig can be used for drilling geothermal hole and well.
4. The blast hole,the anti-floating anchoring hole .


Specifications:


Hole depth

130-170m

Rod dia

150-250mm



Hole angle(°)



0-90°

Output rotary speed of power head

10/20/30/35/40/60/65/70/85/130/170r/min

Stroke of power head

3400mm

Output torque of power head

7500N.m

Stroke of slide frame

900mm

Lifting force of power head

70KN

Feeding force of power head

36kN

Power

Electric motor:

55+18.5KW

Weight

6000KG

Dimensions (L×W×H)

5400×2100×2000mm

Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.



Crawler Anchor Drilling Rig Water Well Drilling

Crawler Anchor Drilling Rig Water Well Drilling



Crawler Anchor Drilling Rig Water Well Drilling
