Single Double Triple Jet Grouting Drilling Machine

China Single Double Triple Jet Grouting Drilling Machine supplier
Single Double Triple Jet Grouting Drilling Machine supplier Single Double Triple Jet Grouting Drilling Machine supplier Single Double Triple Jet Grouting Drilling Machine supplier Single Double Triple Jet Grouting Drilling Machine supplier

Large Image :  Single Double Triple Jet Grouting Drilling Machine

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Xitan
Certification: ISO9001,14000
Model Number: XPG-65

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: CONTACT US
Packaging Details: 40HQ container
Delivery Time: 20 days
Payment Terms: D/P, D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 65 Sets per month
Contact Now
Detailed Product Description
Application: Single,double,triple Jet Grouting, Anchor Hole Diameter(mm): Φ150~Φ250
Hole Depth(m): 150~180 Output Torque (N ▪ M): 5800

                                           XPG - 65 JET-GROUTING DRILLING RIG


Quick detail:



1. XPG-65 drilling rig can accomplish drilling hole and jet grouting process in once time when operating in some certain soft layer. During the jet grouting lifting, the depth of the rotary jet shall not exceed the height of the assistant tower (20m). There is no need to dismantle the drill rod.

2. With good adaptability, this jet grouting drilling rig can be configured with different modules and drilling tools, so as to solve various jet grouting processes.

3. Besides jet grouting process, this jet grouting drilling rig is available for the construction of anchoring technology.

4.Using the hydraulic chuck,it is easy to change the tools,do not need the joint.

5.The shifting and turning of the drill rig, speed change of power head and drill lifting are all adopted hydraulic control, featuring in flexible operation, saving time and labor cost.

6.The drill rigs adopt double winches and electrical control which can reduce labor force and enhance production efficiency.




Application:



1. For jet-grouting and anchoring

2. Soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.

3. Singe pipe, duplex pipe, triple pipe




Specification:



Specification XPG-65
Hole diameter(mm) Φ150~Φ250
Hole depth(m) 150~180
Rod diameter(mm) Φ73,Φ89,Φ102,Φ114
Jrt grouting Single,double,triple
Stake Diameter(mm) 400-600,600-1200,800-1600
A joint pipe 7000,12000,17000,22000
Hole angle(°) 0~90
Output rotary speed of power head (r/min) 0~12,0~25,30,60,75,120,150
Output torque (N ▪ m) 5800
Stroke of power head(mm) 4000
Stroke of Slide Frame(mm) 1500
Lifting force of power head (KN) 66
Lifting speed of power head (m/min) 0~1.3/8/18/27
Feeding force of power head (KN) 34
Feeding speed of power head(m/min) 2.5 /16/36/53 m/min
Input power(electromotor) (KW) 55+11+3
Dimension(L×W×H) (mm) 6385×2050×2550
Construction(L×W×H) (mm) 6385×3340×27530
Weight(kg) 8200

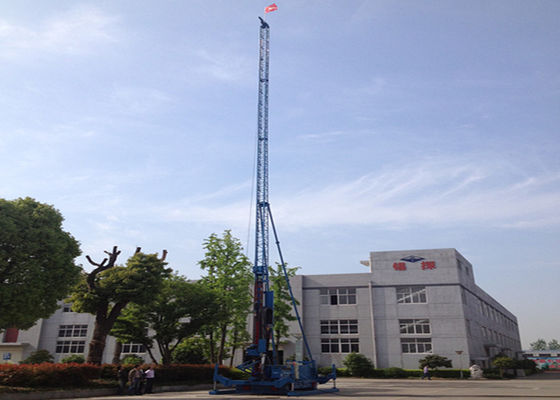

Single Double Triple Jet Grouting Drilling Machine

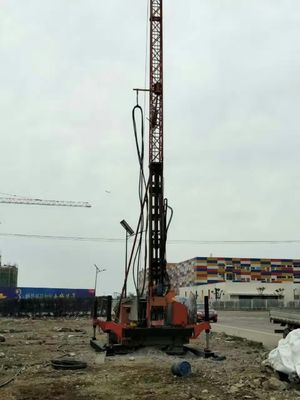

Single Double Triple Jet Grouting Drilling Machine
