Anchor Drilling Crawler Drilling Rig 3 . 5 m Mast Long Stroke XPL - 20A

China Anchor Drilling Crawler Drilling Rig 3 . 5 m Mast Long Stroke XPL - 20A supplier
Anchor Drilling Crawler Drilling Rig 3 . 5 m Mast Long Stroke XPL - 20A supplier Anchor Drilling Crawler Drilling Rig 3 . 5 m Mast Long Stroke XPL - 20A supplier

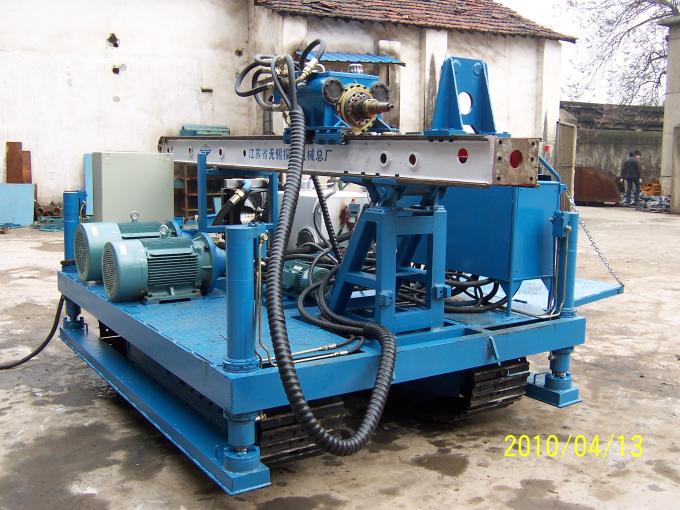

Large Image :  Anchor Drilling Crawler Drilling Rig 3 . 5 m Mast Long Stroke XPL - 20A

Product Details:

Place of Origin: Jiangsu,wuxi,China
Brand Name: xitan
Certification: ISO9001:2008
Model Number: XPL-20A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set/Sets
Price: Contact us
Packaging Details: In 40′container with drilling tools
Delivery Time: One month
Payment Terms: T/T,L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: One set per month
Contact Now
Detailed Product Description
Model: XPL-20A Hole Depth (mm): 30-50
Output Torque Of Power Head: 3600N.m Unit Head Lifting Force (kN): 60
Unit Head Plus-pressure (kN): 30 Stroke Of Power Head (mm): 1800(standard Layout, The Effective Length Of Drill Rod Is 1500)
Motor Power (kW): 18.5+15+1.5

 XPL-20A Anchor Drilling Crawler Drilling Rig 3.5 m Mast Long Stroke

Specifications:


Rotated jet Aperture (mm) Single: 400-600 Double: 600-1200 Triple: 800-1600
Hole depth (mm) 30-50
Anchoring Diameter (mm) Ф90-Ф185
Hole angle(°) 0-90°
Output rotary speed of power head 0-20 (without adjustable level) 5,25,40,110,150r/min
Output torque of power head 3600N.m
Unit head lifting force (kN) 60
Unit head plus-pressure (kN) 30
Lifting speed (m/min) 0-0.7(without adjustable level),0.7,6
Plus-pressure speed (m/min) 0-1.4(without adjustable level),11,12.4
Stroke of power head (mm) 1800(standard layout, the effective length of drill rod is 1500)
Motor power (kW) 18.5+15+1.5
Appearance of construction status (length × width × height mm) 3190×2500×3710
Appearance of transportation status (length × width × height mm) 3280×1850×1910
Weight (kg) About 3900

Quick Detail:

1. This jet grout drill equipment is applied to soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.
2. With drilling depth 30-50m, this XPL-20A jet grout drill machine can ensure continuous dynamic property and static property under high pressure working conditions.
3. To achieve the requirements of market, the drilling tools are in complete set, such as single, double, triple, directional jet grouting, swing jet grouting drill.
4. The high pressure drilling rig is not only for jet grouting, but also for anchoring.

Description:

1. XPL-20A is the crawler drilling rig. Its drilling depth is 30-50m and it is applicable for soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.
2. The drilling rig can apply singe pipe, duplex pipe, triple pipe tools and so on. Optional pendulum jetting device can be added to achieve the pendulum jet-grouting function.
3. The 20A high pressure drill machinery is convenient to operate. Because it adopts full hydraulic technology and has breakthrough in key technology, such as adding stepless speed regulation to jet grouting drilling and anchor drilling.
4. The high pressure drilling rig is not only for jet grouting, but also for anchoring.

Applications:


1.For jet-grouting and anchoring.
2.Soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.
3.Singe pipe, duplex pipe, triple pipe.

Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
