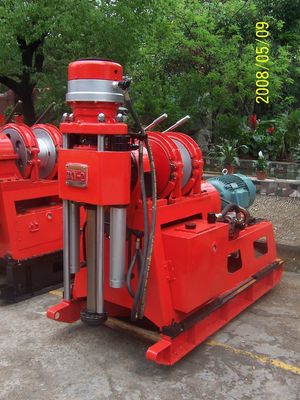

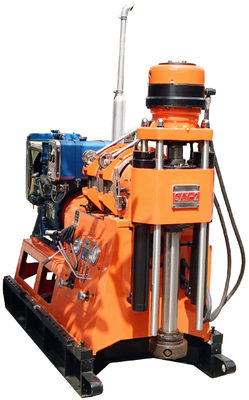

GXY-2 Hydraulic Core Drilling Rig
Quick Detail:
1.There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2760 N·m.
2.GXY-2 drilling rig can be uesed as the core drilling if the depth beyond 300m.
3.Easy to master the hole condition with a long life anti-vibration meter.
4.It is convenient for you to treat trouble with two reverse speeds. It is convenient for clamping and loosing drill heave with hydraulic chuck.
5.By using hydraulic chuck, It is in strong and steady clamping force. By using the hydraulic fed, the drilling rig can move back directly.
Description:
1. Model GXY-2 drilling rig is a kind of spindle rotatory drilling rig. It was developed by Wuxi Mineral Exploration Machinery General Factory, Jiangsu Province. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, water discharge tunnel,it is aso could for explore coal mine.
2. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.
3. Light in weight, the rig can be disassembled easily, the biggest apparatus is in 200kg. The whole drill is in 1000kg, it can be moved easily especially in mountain area.
Specifications:
| Hole depth | 300-600m | |
| Rod dia | 42mm/50mm |
|
| Hole angle(°) |
360° | |
| Spindle speed | Forward speed:70;121;190;263;329;570;899;1241rpm | |
| Reverse speed:55/257rpm | ||
| Stroke of spindle | 600mm | |
| Max .lifting capacity | 25KN | |
| Max .feeding capacity | 20KN | |
| Max .distance from the spindle lower to the earth surface |
600mm | |
| Hoist | Max .lifting capacity (single line): |
15KN |
| Lifting speed: | 0.2;0.52;1.05;2.06m/s | |
| Power | Electric motor: | 11kw,2200rpm |
| Diesel engine | S1100 or S1100M | |
| Weight | 500kg | |
| Dimensions (L×W×H) | 1450×970×1280mm | |
