Deep Rock Drill Rig Building Construction Machine

Deep Rock Drill Rig Building Construction Machine

Deep Rock Building Construction Machine

Building Construction Machine Deep Rock

Construction Deep Rock Drill Rig

Place of Origin:

China

Brand Name:

zuanshen

Certification:

ISO9001

Model Number:

ZML70

Contact Us
Request A Quote
Product Details
Product Name:
Deep Rock Drill Rig For Sale
Overall Dimensions:
4000*1700*2000mm
Gas Consumption:
9~22m³/min
Drilling Diameter:
Φ90~250mm
Weight:
3800kg
Diesel Engine Power:
37kw
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD
Packaging Details
nude
Delivery Time
3-5 work days
Payment Terms
T/T
Product Description

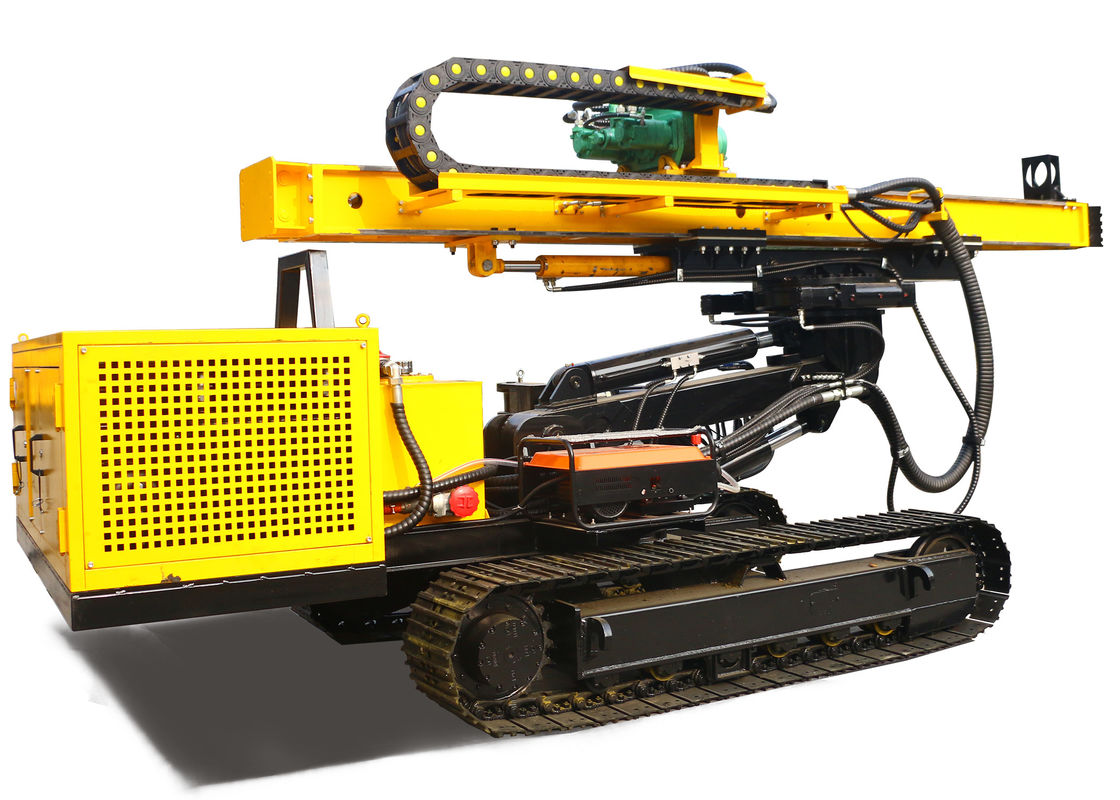

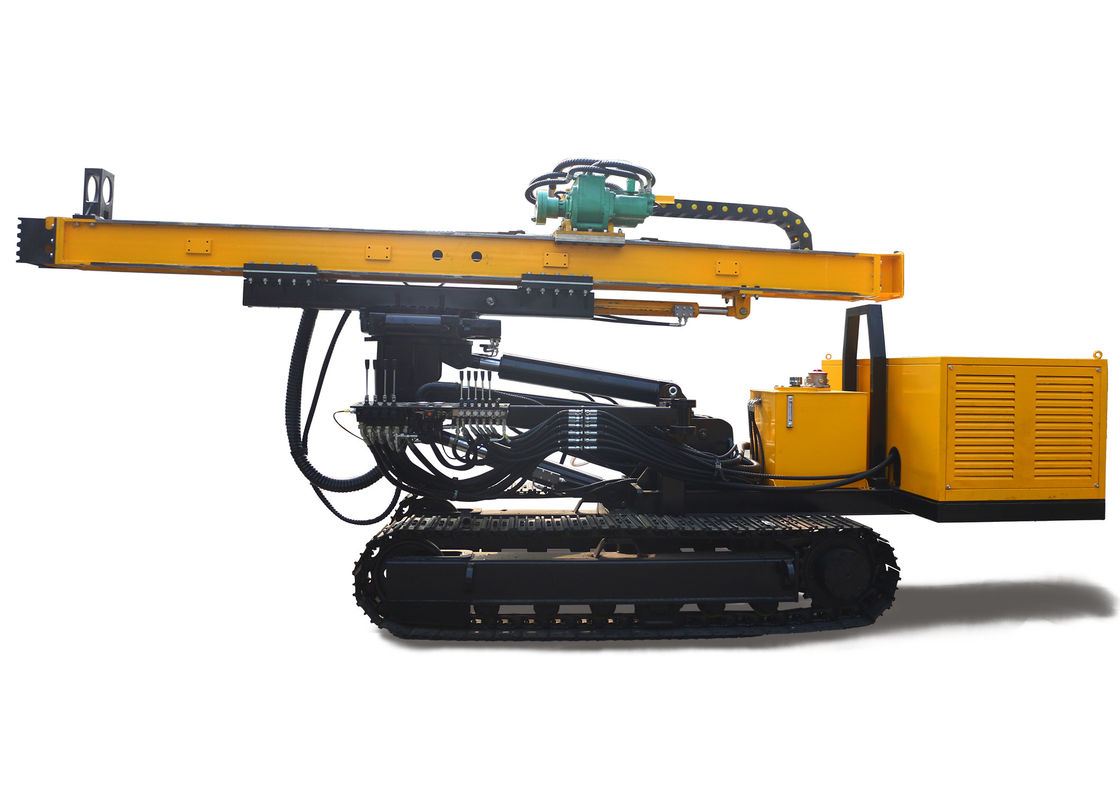

ZML70 Building Construction Machine deep rock drill rig for sale



It is widely used in buildings, highways, railways, water conservancy, electric power, coal mines, tunnels and in the field of military engineering. It is especially suitable for drilling in rock drifting, egg, gravel stratumand broken weathered rock, especially it can reflect its high efficiency and high quality performance. It can drill through complex strata quickly and efficiently, and has broad application prospect in various rock and soil anchorage engineering. It is suitable for all kinds of surrounding rock geological conditions such as 2 and above 2 levels.



With the use of the piston variable pump, high pressure resistance and long life;
Vertical upward 6 meter dome drilling,
It has two dimensions 360 degree rotation functions. It can drill in all directions without any dead angles,Strong track driving ability, can adapt to all kinds of abominable terrain,
With a clamp holder, the drill pipe and casing can be dismantled easily to save labor costs.



Technical specifications



Overall dimensions 4000*1700*2000mm
Gas consumption 9~22m³/min
Drilling angle 0~360°
Drilling diameter Φ90~250mm
Drilling specifications Φ76*1500/2000/3000
Φ89*1500/2000/3000
Power head output speed 35~70rpm
Power head output torque 4200N.m
Power head lifting force 45kn
Power head feeding force 35kn
Weight 3800kg
Motor power 22kw
Diesel engine power 37kw
