Product Details
Product Name:
Hand Held Rock Drilling Equipment
External Dimensions (L × W × H (mm):
7450 × 2450 × 2000
Drilling Diameter (mm):
Power (kW):
Fuel Tank Volume (L):
Payment & Shipping Terms
Minimum Order Quantity
Delivery Time
3-5 work days
Payment Terms
Product Description

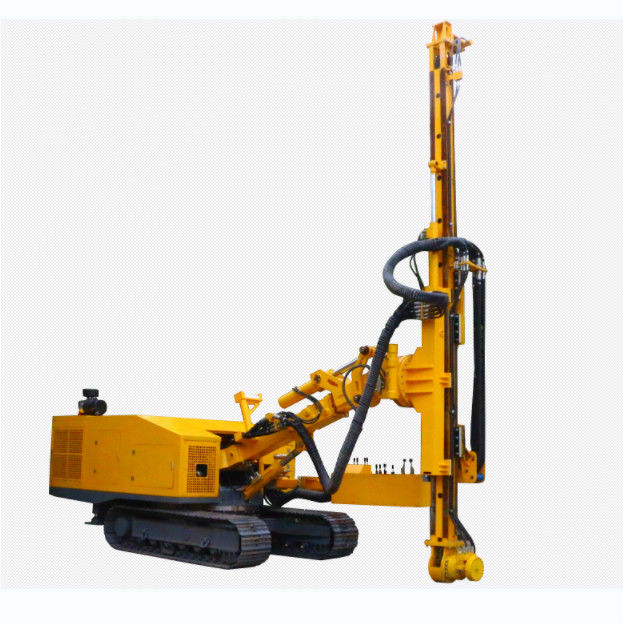

ZML160 Hand held rock drilling equipment multifunctional crawler type drilling rig


Applicable scope:

It is widely used in fields such as construction, highways, railways, water conservancy, electricity, mines, tunnels, etc. It is particularly suitable for rock drilling in drift, egg, gravel formations, and broken strongly weathered rock cover formations. It can demonstrate its efficient and stable performance, and can quickly and efficiently drill through complex formations. It has broad application prospects in various rock and soil anchoring projects.


Main features

a. It is a multifunctional drilling rig that meets the needs of tunnel pipe shed, advanced drilling and core extraction, system anchor rods, soft foundation treatment for building construction, slope anchor cables, hydropower station reinforcement, earthwork excavation, self entry or self rotation anchor rod construction, ground source heat pump engineering, and other construction projects. The construction categories are interchangeable, and only the power head and related accessories need to be replaced;


b. Horizontal lifting of 4.5 meters, capable of 360 degree rotation above the chassis, equipped with two hydraulic support legs for smoother and safer construction; The vertical height can meet the construction requirements of 5-9 meters (the length of the mast can be adjusted according to the size of the tunnel section);


c. By using pilot valves and variable displacement piston pumps with load feedback systems, it has the functions of power protection and pressure cutoff. While effectively adapting to the total flow demand of various executing components, it achieves the best power matching under different working conditions and maximizes energy conservation;


d. The drilling rig is equipped with a hydraulic clamping and unloading device, which automatically unlocks and reduces auxiliary time and labor intensity;


e. Optional feng shui linkage device to achieve dust reduction effect and provide a good working environment;


f. The drilling rig is equipped with a translational mechanism, which can adjust multiple angles and heights without moving the machine, especially suitable for construction inside tunnels;


g. Strong drilling ability, wide applicability, long drilling process, fast drilling speed, easy handling of accidents, high drilling efficiency;


h. Select domestic and foreign famous brand components to ensure stable and reliable performance and long service life of the entire machine.


Technical specifications


ZML160Z parameters
Basic parameters
Equipment weight (kg) 9500
External dimensions (L × w × H (mm) 7450 × 2450 × 2000
Control mode: operation handle
Rated pressure of hydraulic system (Mpa) 25
Maximum horizontal lifting height (mm) 4558
Drill arm
Number of drill arms 1
Structural form: oil cylinder
Big arm extension (mm) 900
Lifting angle (°) +45, -10
Number of Masts 1
Propulsion type: motor reducer and chain
Total length of mast (mm) 6431
Advance stroke (mm) 4000
Maximum feeding force (kN) 55
Maximum lifting force (kN) 55
Drilling diameter (mm) 38-102
Flip angle (°) -1.5,+138.5
Swinging angle (°) ± 180
Compensation stroke (mm) 1000
Walking speed (km/h) ≥ 1.2
Climbing ability (%) ≤ 36
Ground clearance (mm) ≥ 360
Maximum departure angle (°) 25
Grounding specific pressure (Mpa) 0.04
Diesel engine Weichai
Power (kW) 37
Emission standards for exhaust gases: turbocharging, National III
Fuel tank volume (L) 105
Hydraulic system
Hydraulic control method multiple valve
Hydraulic oil tank volume (L) 240
Return oil accuracy( μ m) 10
Electrical system
Main electrical components imported
Safety protection system short circuit protection
Drilling rig control system
Control type multiple valve
Control panel type handle type
Electronic system power supply type 12VDC
