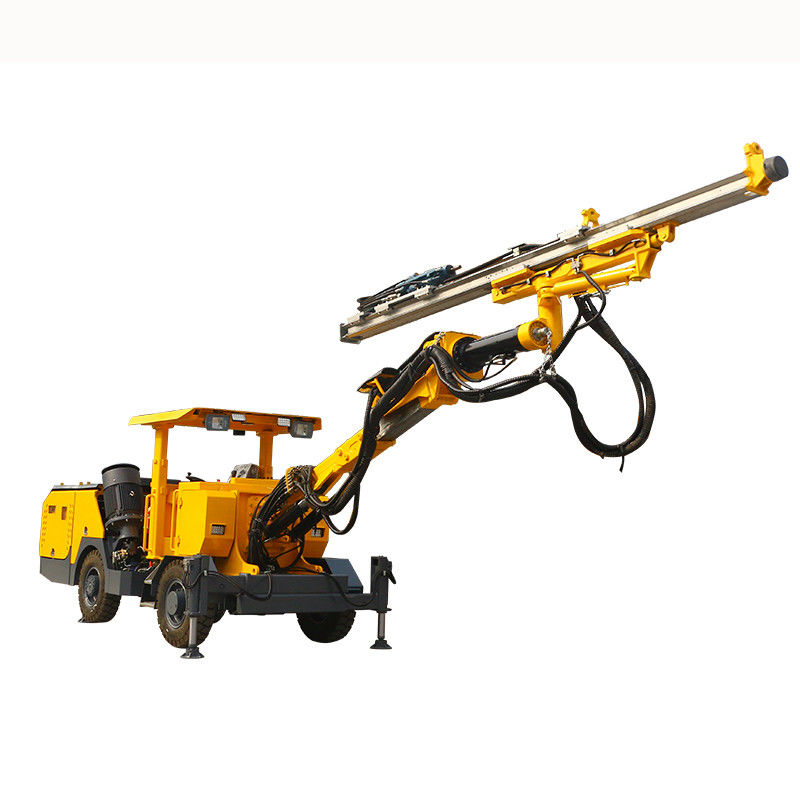

DW311 (CYTJ45) mining hydraulic tunneling jumbo


Introduction: It is a small and medium-sized hydraulic rock drilling equipment independently researched, developed, and manufactured by our company. It is mainly suitable for blasting and bolting operations required for excavation of tunnels, mining, hydropower, railways, highways, and other fields;


It adopts an advanced fully hydraulic rock drilling system, equipped with an anti jamming drill device. It has a compact structure, and the drilling arm is extendable. It can perform multi angle and multi-directional drilling relatively parallel to the working section. The climbing ability is ≤24%, the walking speed can reach 12km/h, transition speed is fast. It is an excellent underground mining and tunnel excavation mechanized drilling equipment.


Technical specifications


Complete machine
Overall dimensions (L*W*Ht) 11354*2060*2525/3225mm
Cross section area 31 square meters
Applicable cross-sectional area (b*h) 6645mm*6060mm
Drilling diameter Φ43mm- Φ89mm
Drill pipe length 3700/4305mm
Drilling depth 3315/3920mm
Motor power 55kw
Hydraulic oil tank capacity 180L
Overall weight 13500kg
Drilling arm
Rotation ±180°
Propulsion downward/upward 90°/3°
Travel compensation 1500mm
Horizontal extension length 1200mm
Diesel engine power 80HP/60kW
Turning direction ± 38°
Tires 9.0*R20
Climbing ability ≤24%
Rear axle swing angle ± 7 °
Approach angle/departure angle 18°/15°
Turning radius inner side 5.5m/outer side 7m
Walking speed 10km/h
Ground clearance 265mm
Driving brake - Wet axle hydraulic brake
Fuel tank 80L
Electrical system
Battery 2*12v/120Ah
Driving lighting 24V
Work lighting 220v
Gas supply system
Flow rate 0.35m³/ Min
Working air pressure 0.7Mpa
Water supply system
Flow rate 70L/min
Working water pressure 0.8-1.2Mpa




Adaptation range

The whole machine has the function of rotating 360 degrees in multiple dimensions, drilling in all directions, truly drilling without dead angles, and suitable for cross-sectional areas up to 31m²;


High security

Adopting a sturdy ceiling that can be lifted and protected, ensuring the safety of operators, safety is the benefit;


High work efficiency

Direct control rock drilling system, equipped with automatic anti jamming function, automatic end point retraction function, using different hydraulic pumps for impact, rotation, and propulsion. Low pressure and high flow hydraulic system takes into account efficient rock drilling, preventing drill rod lock up, improving drill rod consumption, and reducing operating costs;


Trolley arrangement

Ensure good visibility for operators, and the powerful four-wheel drive articulated chassis ensures flexible, fast, and safe driving in narrow tunnels;
