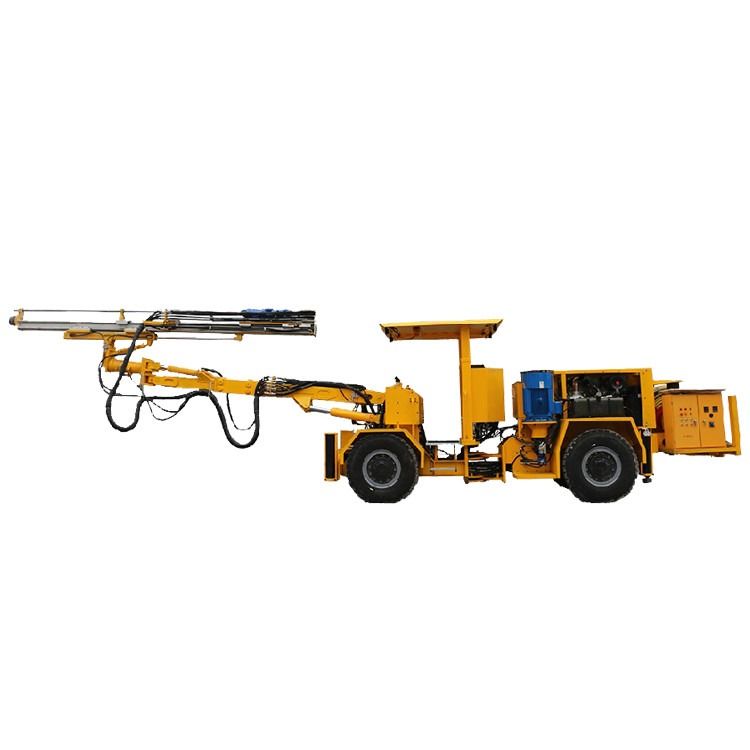

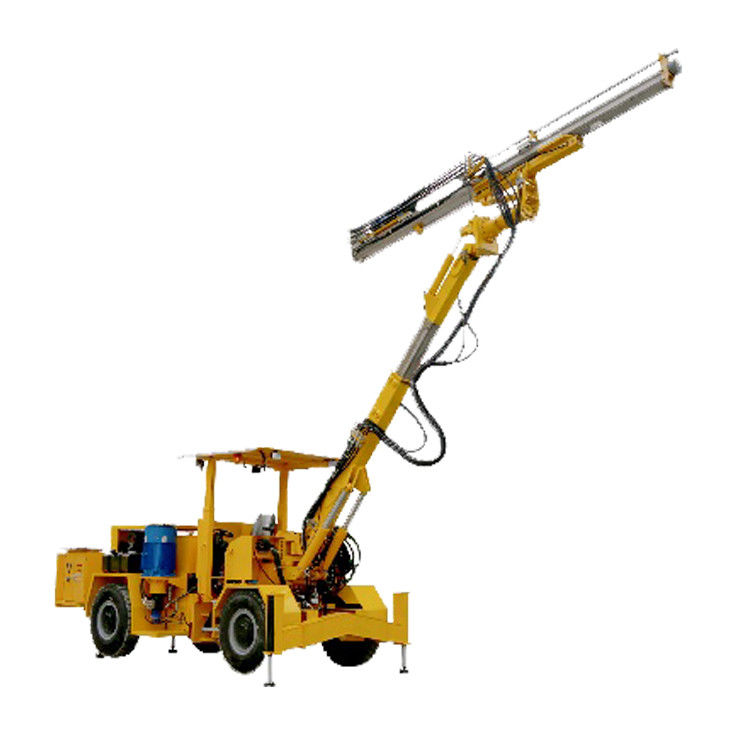

Tunneling Jumbos And Tunnel Drilling Rig With High Productivity And Reliability
DW551 is a small and medium-sized hydraulic rock drilling equipment independently researched, developed, and manufactured by our company. It is mainly suitable for excavation and construction operations in tunnels, mining, hydropower, railway, highway, and other fields; It adopts an advanced fully hydraulic rock drilling system, equipped with an anti jamming device. It has a compact structure, and the drilling arm is extendable. It can perform multi angle and multi-directional drilling positioning relatively parallel to the working section. The climbing ability is ≤15%, the walking speed can reach 12km/h, moving speed is fast. It is an excellent underground mining and tunnel excavation mechanized drilling equipment.
Technical specifications
| DW551 Tunneling Jumbos And Tunnel Drilling Rig With High Productivity And Reliability | |
| Complete machine | |
| Overall dimensions (L*W*H) | 14330*2180*2380/3080mm |
| Applicable section of anchor rod (b * h) | 16*10.4m |
| Applicable section for excavation (b * h) | 10*7.5m |
| Drilling diameter | Φ43mm-Φ89mm |
| Drill pipe length | 3700/4305/4915mm |
| Drill hole depth | 3300/3900/4570mm |
| Motor power | 55kw |
| Hydraulic oil tank capacity | 250L |
| Overall weight | 14500kg |
| Drilling arm | |
| Rotation | Positive 135°/Negative 225° |
| Propulsion downward/upward | 3°/90° |
| Compensation | 1500mm |
| Chassis | |
| Maximum power of diesel engine | 100HP/74kw |
| Turning direction | ±40° |
| Tire specifications | 12.0*R20 |
| Climbing ability | ≤15% |
| Rear axle swing angle | ±7° |
| Approach angle/departure angle | 18°/16° |
| Walking speed | 12 km/h on horizontal road |
| Minimum turning radius | Inside 3.3m/Outside 6.95m |
| Minimum ground clearance | 275mm |
| Driving brake | wet brake |
| Fuel tank | 110L |
| Electrical system | |
| Total power | 61kw |
| Voltage | 380v |
| Battery | 2*12v |
| Driving light | 24v |
| Work light | 220v |
| Gas supply system | |
| Flow rate | 0.36m³/min |
| Working air pressure | 0.7Mpa |
| Water supply system | |
| Flow rate | 70L/min |
| Working water pressure | 0.8-1.5Mpa |
Product advantage
Wide construction scope
The drilling arm can rotate 360°during propulsion, and the drilling arm with translational propulsion can drill holes in all directions, no dead angle;
High security
It has excellent power system, greatly improves the construction environment, and achieves green construction;
High work efficiency
The high-strength chain, combined with a high torque hydraulic motor, provides reliable pushing and pulling support during the drilling process; Accurate drilling reduces the occurrence of leakage and deviation during construction, significantly improving the blasting effect;
Operating platform
Ensure that the operator has a good field of vision, simple and convenient hydraulic control console, allowing the operator to operate easier and improve work efficiency;
