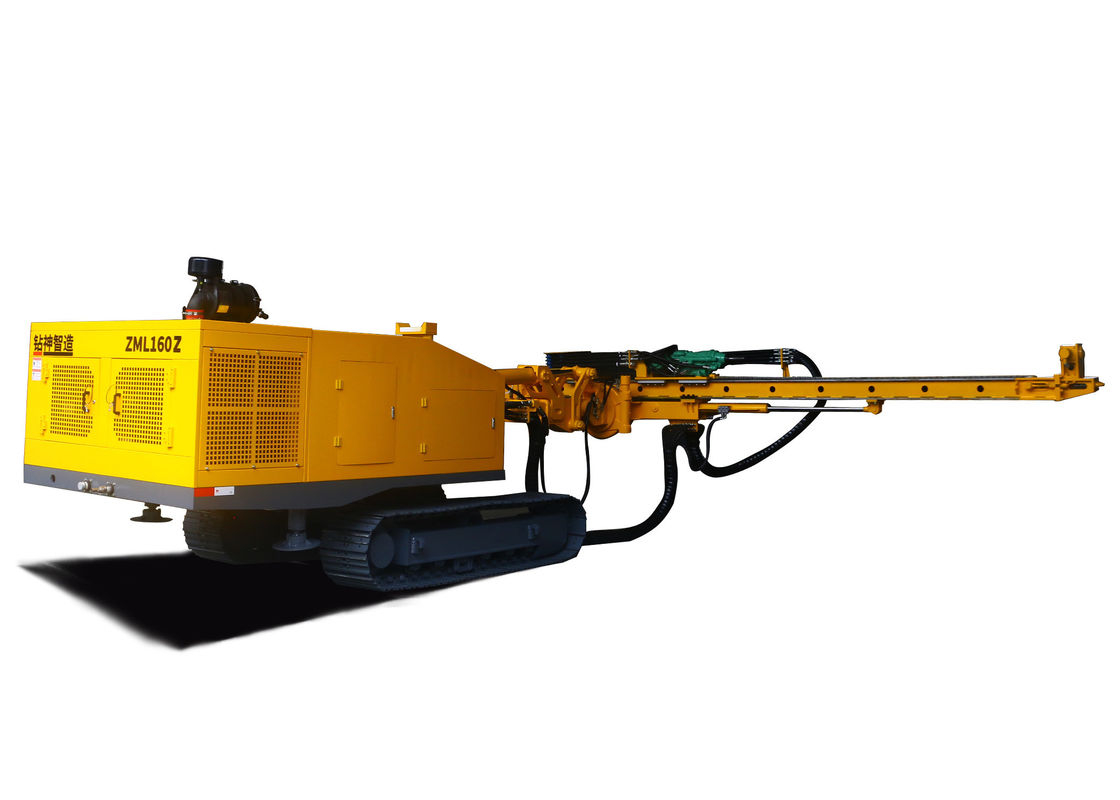

ZML160Z multifunctional crawler type drilling rig rock buster drill rig
Applicable scope:
It is widely used in fields such as construction, highways, railways, water conservancy, electricity, mines, tunnels, etc. It is particularly suitable for rock drilling in drift, egg, gravel formations, and broken strongly weathered rock cover formations. It can demonstrate its efficient and stable performance, and can quickly and efficiently drill through complex formations. It has broad application prospects in various rock and soil anchoring projects.
Main features
a. It is a multifunctional drilling rig that meets the needs of tunnel pipe shed, advanced drilling and core extraction, system anchor rods, soft foundation treatment for building construction, slope anchor cables, hydropower station reinforcement, earthwork excavation, self entry or self rotation anchor rod construction, ground source heat pump engineering, and other construction projects. The construction categories are interchangeable, and only the power head and related accessories need to be replaced;
b. Horizontal lifting of 4.5 meters, capable of 360 degree rotation above the chassis, equipped with two hydraulic support legs for smoother and safer construction; The vertical height can meet the construction requirements of 5-9 meters (the length of the mast can be adjusted according to the size of the tunnel section);
c. By using pilot valves and variable displacement piston pumps with load feedback systems, it has the functions of power protection and pressure cutoff. While effectively adapting to the total flow demand of various executing components, it achieves the best power matching under different working conditions and maximizes energy conservation;
d. The drilling rig is equipped with a hydraulic clamping and unloading device, which automatically unlocks and reduces auxiliary time and labor intensity;
e. Optional feng shui linkage device to achieve dust reduction effect and provide a good working environment;
f. The drilling rig is equipped with a translational mechanism, which can adjust multiple angles and heights without moving the machine, especially suitable for construction inside tunnels;
g. Strong drilling ability, wide applicability, long drilling process, fast drilling speed, easy handling of accidents, high drilling efficiency;
h. Select domestic and foreign famous brand components to ensure stable and reliable performance and long service life of the entire machine.
Technical specifications
| ZML160Z parameters | |
| Basic parameters | |
| Equipment weight (kg) | 9500 |
| External dimensions (L × w × H (mm) | 7450 × 2450 × 2000 |
| Control mode: operation handle | |
| Rated pressure of hydraulic system (Mpa) | 25 |
| Maximum horizontal lifting height (mm) | 4558 |
| Drill arm | |
| Number of drill arms | 1 |
| Structural form: oil cylinder | |
| Big arm extension (mm) | 900 |
| Lifting angle (°) | +45, -10 |
| Mast | |
| Number of Masts | 1 |
| Propulsion type: motor reducer and chain | |
| Total length of mast (mm) | 6431 |
| Advance stroke (mm) | 4000 |
| Maximum feeding force (kN) | 55 |
| Maximum lifting force (kN) | 55 |
| Drilling diameter (mm) | 38-102 |
| Flip angle (°) | -1.5,+138.5 |
| Swinging angle (°) | ± 180 |
| Compensation stroke (mm) | 1000 |
| Chassis | |
| Walking speed (km/h) | ≥ 1.2 |
| Climbing ability (%) | ≤ 36 |
| Ground clearance (mm) | ≥ 360 |
| Maximum departure angle (°) | 25 |
| Grounding specific pressure (Mpa) | 0.04 |
| Diesel engine | Weichai |
| Power (kW) | 37 |
| Emission standards for exhaust gases: | turbocharging, National III |
| Fuel tank volume (L) | 105 |
| Hydraulic system | |
| Hydraulic control method | multiple valve |
| Hydraulic oil tank volume (L) | 240 |
| Return oil accuracy( μ m) | 10 |
| Electrical system | |
| Main electrical components | imported |
| Safety protection system | short circuit protection |
| Drilling rig control system | |
| Control type | multiple valve |
| Control panel type | handle type |
| Electronic system power supply type | 12VDC |
