Elevating Multifunctional Drilling Rig Hydraulic Crawler Drill Machine

Elevating Multifunctional Drilling Rig Hydraulic Crawler Drill Machine

Elevating Multifunctional Drilling Rig

250mm Multifunctional Drilling Rig

90mm hydraulic crawler drill machine

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Product Name:
Elevating Drilling Rig
Air Consumption:
Climbing Ability:
≦ 25(°)
Hole Diameter:
Drill Rod Type:
About 8500kg
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Nude or as per customer's requirement.
Delivery Time
3-5 work days
Payment Terms
Product Description

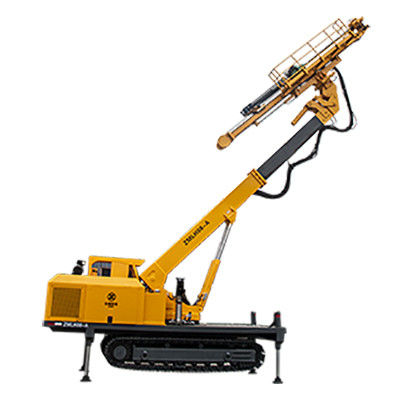

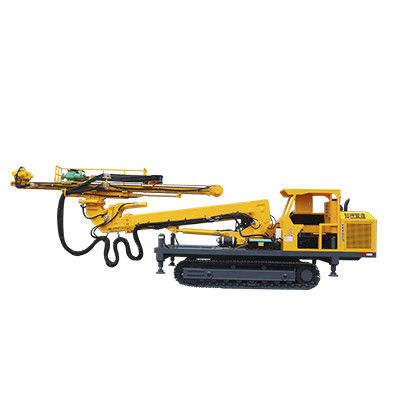

ZMLH-08-A High-Arm Rock Drilling Rig Elevating drilling rig



1,ZMLH-08-A High-Arm Rock Drilling Rig is designed for tunnel support, fan-shaped anchoring of tunnel periphery and sidewalls, advanced geological forecasting inside tunnels, groove excavation, rock coring, continuous drilling in rock and soil layers, and other construction tasks. The working mechanism is driven by full hydraulic power, with a drilling speed of 0.8-2 meters per minute. It can be equipped with interchangeable power heads for anchoring and coring, enabling advance probing holes and horizontal coring operations. The rig is powered by an engine for mobility.


2,With a horizontal reach of 9.2 meters and a vertical height of 11 meters, the rig features a compact and stable structure, low center of gravity, ensuring not only enhanced safety but also reduced labor intensity and improved work efficiency for operators.


3,Equipped with proportional valves and variable piston pumps, along with a load feedback system, the rig possesses power protection and pressure cutoff functions. It achieves compound actions, adapting to the total flow requirements of various executing components, optimizing power matching under different working conditions, and maximizing energy efficiency.


4,The power head has a stroke of 4 meters, which can be adjusted according to the depth of anchor holes and excavation holes by modifying the length of the advancing beam.


5,The rig demonstrates strong drilling capabilities, wide applicability, convenient maintenance, and high drilling efficiency.


6,Selected with domestically renowned components, the rig ensures stable and reliable performance, as well as a long service life.


7,The electrical system employs wired/wireless remote control, allowing construction personnel to choose safe operating positions (with local emergency operation available).


Technical specifications


Overall dimensions (Length x Width x Height) mm 10430*2440*2960
Main motor power (kW) 55
Hydraulic oil tank capacity (L) 350
Total weight (kg) 15000
Horizontal swing/rotation (degrees) +40°, -40°
Propeller tilt (degrees) Downward 147°, Upward 8°
Propeller compensation (mm) 1000
Diesel engine power (HP/kW) 100/73.5
Approach/departure angle (degrees) Approach angle 22°, Departure angle 20°
Travel speed (km/h) Low speed 1.5, High speed 2.2
Climbing gradient (degrees) 25°
Fuel tank capacity (L) 170L
Flow rate (L/min) 350
Operating air pressure (MPa) 0.6-0.8
Flow rate (L/min) 30
Operating water pressure (MPa) 0.2-0.8
Total motor power (kW) 62(55+3+4)
Power supply voltage (V) 380
Battery voltage/capacity (V/Ah) 2 x 12/80
Travel lighting voltage (V) 24
Electrical system voltage (V) 24
Rock drill model YDH210
Drilling diameter (mm) φ43-φ76
Drill rod length (mm) 4306
Drilling depth (mm) 4000
Drilling speed (m/min) 0.8-2
Power head output speed (rpm) 45-55
Power head maximum torque (N.m) 6000
Compensation stroke (mm) 1000
Power head maximum lifting force (kN) 40
Power head maximum feed force (kN) 15-20
Power head maximum stroke (mm) 4000
Drill rod specifications Φ76*1500/2000/3000
Drilling diameter (mm) φ90-φ130
Breaking method Impact rotary type
Compatible impactors: CIR series, DHD series
Air consumption (m3/min) 9-22 (external air source)
