Name: ISO9001 Hydraulic Crawler Type Underground Mining Drill
Brand: Sichuan Zuanshen Intelligent Machinery Manufacturing Co., Ltd.
SKU: DT281
Availability: InStock

Home > products > Mining Drilling Rig >

ISO9001 Hydraulic Crawler Type Underground Mining Drill

ISO9001 Underground Mining Drill

Crawler Type Underground Mining Drill

Hydraulic jumbo drill machine

Place of Origin:

china

Brand Name:

zuanshen

Certification:

ISO9001

Model Number:

DT281

Request A Quote

ISO9001 Hydraulic Crawler Type Underground Mining Drill

Product Details

Product Name:

Hydraulic Crawler Type Jumbo Rock Drill And Underground Mining Drilling Apparatus

Advantage:

Customized

Overall Dimensions (L*W*Ht):

9685 * 1700 * 2229/2929mm

Applicable Cross-sectional Area (b*h):

5.4m * 5.2m

Drilling Diameter:

Φ43mm- Φ89mm

Drill Pipe Length:

3700/3050mm

Motor Power:

75kw

Hydraulic Oil Tank Capacity:

250L

Overall Weight:

10500kg

Color:

Yellow

Payment & Shipping Terms

Minimum Order Quantity

Price

USD

Packaging Details

Nude or as per customer's requirement.

Delivery Time

7-10 work days

Payment Terms

T/T

Supply Ability

2 sets per month

Underground Mining Hydraulic Rock Bolting Rig Customized Design for Maximum Efficiency

Get Best Price

Video

170L Hydraulic Oil Tank Capacity Underground Mining Drill Rig with 55kw Electric Motor

Get Best Price

Open Air Mine Down The Hole Drill Rig Hydraulic Crawler Type

Get Best Price

ISO9001 Hydraulic Crawler Type Mining Down The Hole Drill Rig

Get Best Price

86-028-82666320

Contact Now

Product Description

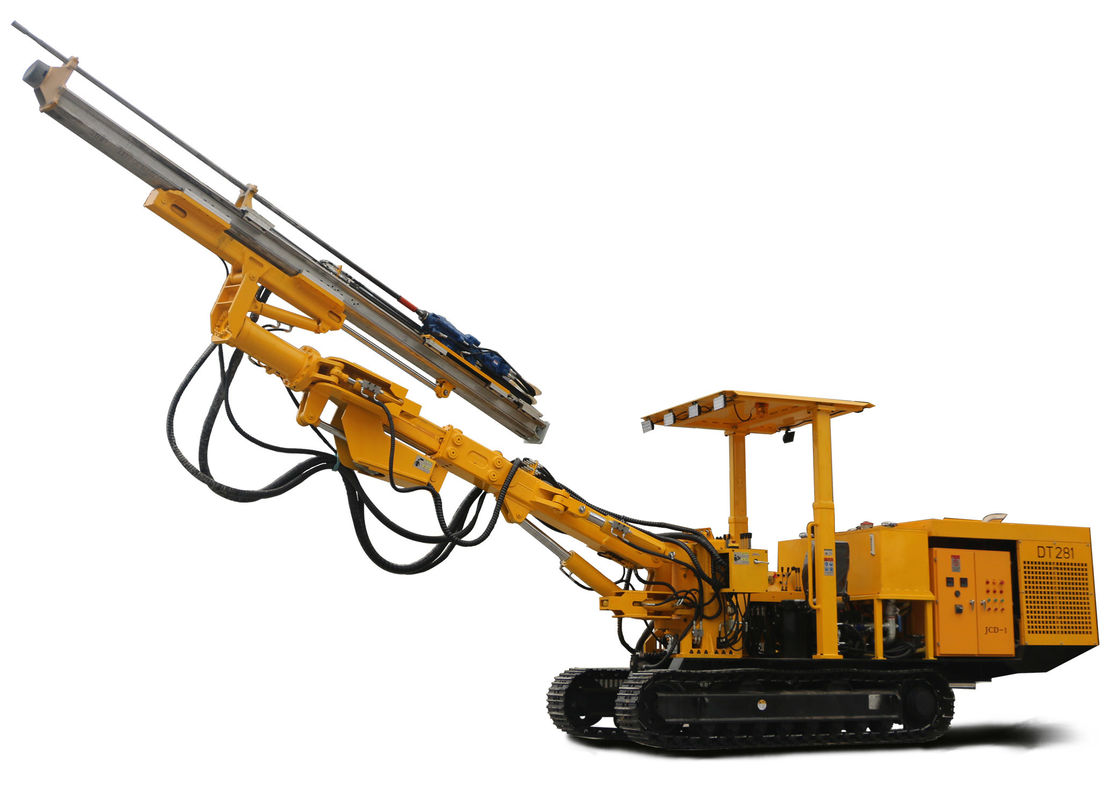

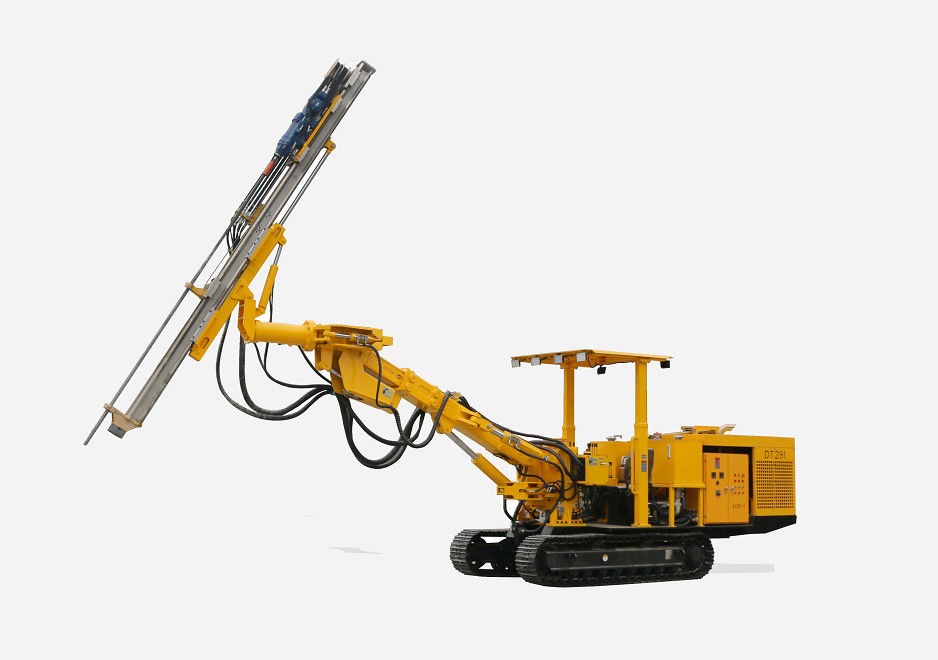

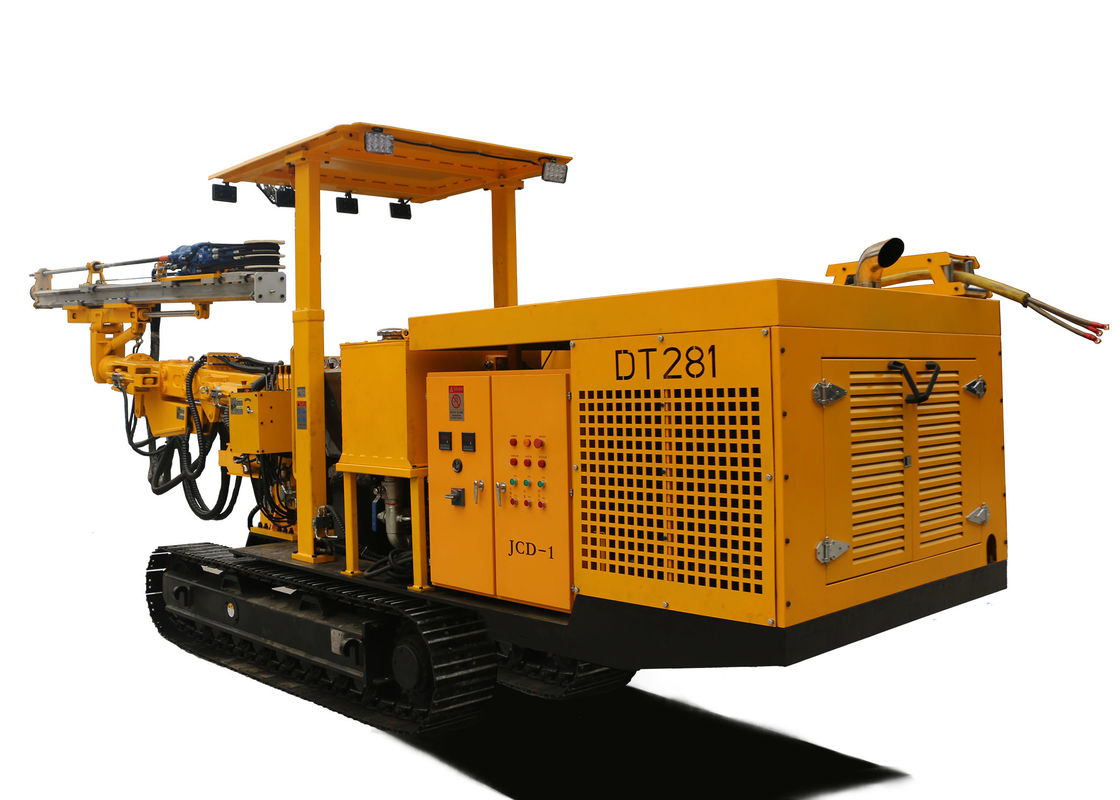

Hydraulic Crawler Type Jumbo Rock Drill And Underground Mining Drilling Apparatus

It is used for blasting holes and anchor rod hole operations in the fields of metal mine excavation and tunnel excavation.

Workers stand in a safe place to operate it for rock drilling. This equipment replaces traditional manual air gun drilling operations, reducing worker labor intensity, improving work efficiency and safety factor. Applicable to cross-section (width × Height): 5.4m*5.2m, with a climbing ability of ≤25% and a walking speed of up to 2km/h. The working mechanism of this machine adopts full hydraulic drive. The machine is lifting, compact in structure, advanced in hydraulic system, easy to maintain, low in center of gravity, flexible in movement, fast in rock drilling speed, stable in operation, convenient in operation, and safe and reliable.

Technical specifications

DT281 Hydraulic Crawler Type Jumbo Rock Drill And Underground Mining Drilling Apparatus
Overall dimensions (LWH)	9685 * 1700 * 2229/2929mm
Applicable cross-section (b * h)	5.4m * 5.2m
Drilling diameter	Φ43mm- Φ89mm
Drill pipe length	3700/3050mm
Drilling depth	3300/2690mm
Motor power	75kw
Hydraulic oil tank capacity	250L
Total weight	10500kg
Drilling arm
Rotation positive	135 °/negative 225 °
Propulsion pitch/pitch	pitch 9 °/pitch 3 °
Travel compensation	1500mm
Chassis
Maximum power of diesel engine	100HP/74kw
Climbing ability	≤ 25 °
Walking speed	2km/h
Ground clearance	340mm
Fuel tank	100L
Electrical system
The total power of the motor	81kw
Power supply voltage	380v
Motor speed	1480r/min
Battery	2 * 12v/120Ah
Driving lighting	24V
Working light	220V
Electrical system	24V
Gas supply system
Flow rate	0.35m ³/ Min
Working pressure	0.3~0.7Mpa
Water supply system
Flow rate of	70L/min
Working water pressure of	0.8~1.5Mpa
