Hydraulic Crawler Type Mining Drilling Rig And Down The Hole Drill Rig Used In Open Pit Mine

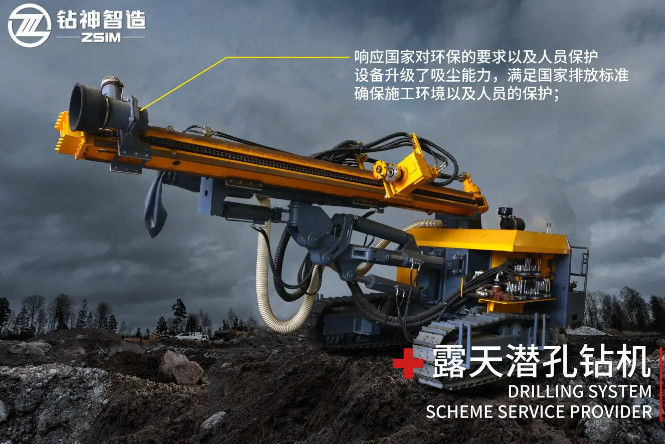

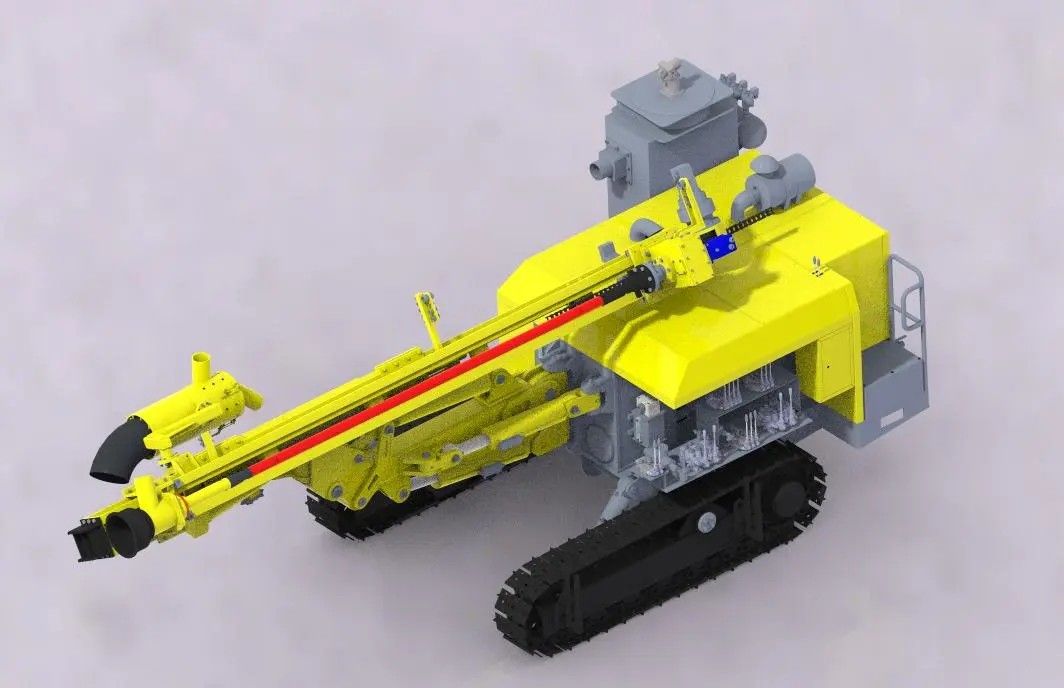

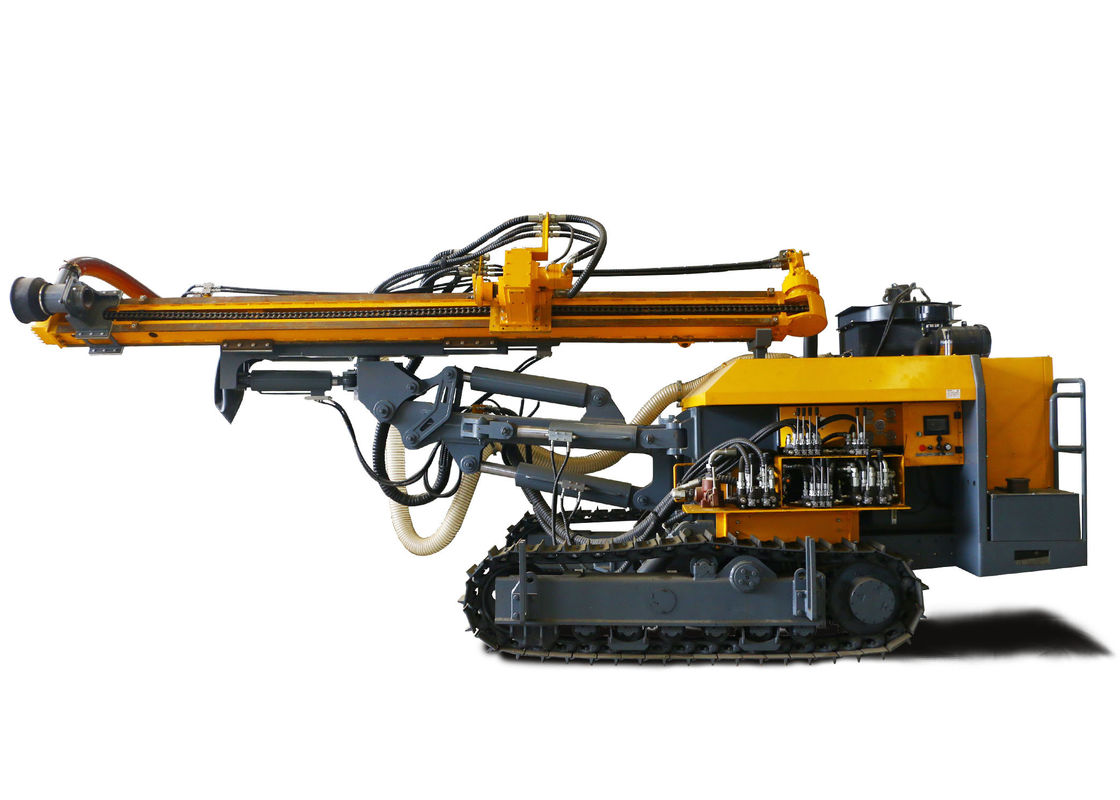

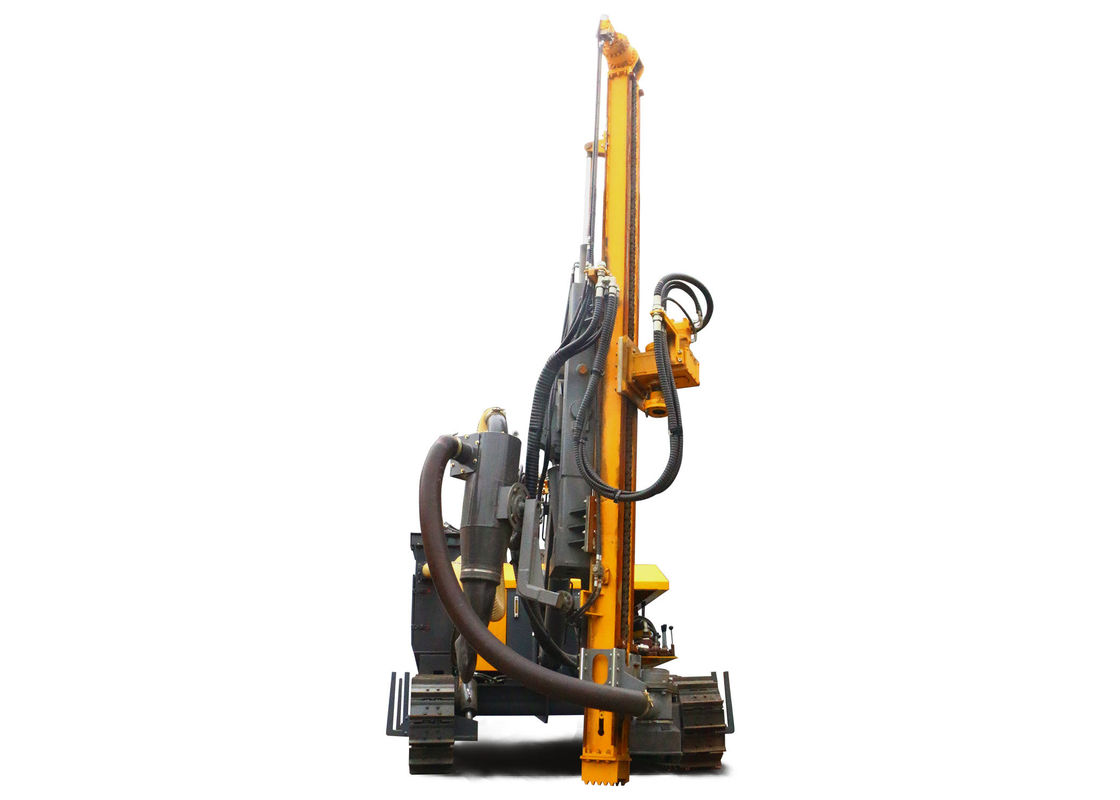

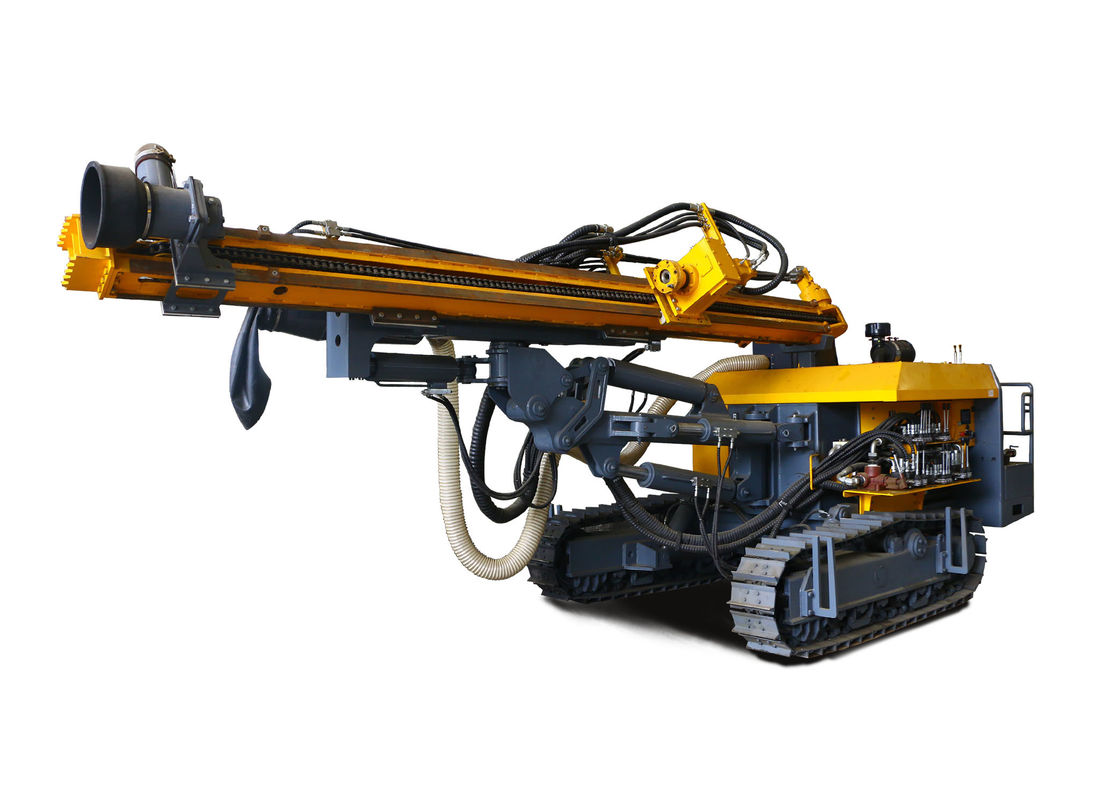

Zk70 open-pit down hole drilling rig
It is a small and medium-sized open-pit down-hole equipment independently researched, developed, and manufactured by our company. It is mainly suitable for blasting hole operations required for open-pit engineering in fields such as mining, quarrying, hydropower, railways, highways, etc. The machine has the characteristics of compact structure, low center of gravity, flexible mobility, and stable operation;
It adopts a sturdy and reliable crawler drive for walking, with excellent off-road climbing performance. The drilling rig uses hydraulic oil to drive the motor and boom, and compressed air to drive the impactor, working together to complete efficient drilling operations.
Product advtantages:
Adaptation range
The whole machine is flexible, with a sturdy and reliable crawler chassis and high-performance walking motors. The addition of a track swing device is suitable for various complex terrains;
High security
Equipped with an efficient dust removal and filtration system, with strong suction, large air volume, and strong dust removal ability, it greatly improves the construction environment and achieves green mining;
High work efficiency
The high-strength increased chain, combined with a high torque hydraulic motor, provides reliable propulsion and lifting support during the drilling process;
Accurate drilling reduces the occurrence of leakage and deviation during construction, significantly improving the integrity of blasting;
Operating platform
Ensure that the operator has a good field of vision, a simple and convenient hydraulic control console, allowing the operator to get started faster and improve work efficiency;
Technical specifications
| ZK70 Hydraulic Crawler Type Mining Drilling Rig And Down The Hole Drill Rig Used In Open Pit Mine | |
| Overall dimensions (L*W*H) | 6710 * 2300 * 2600mm |
| Drill hole diameter | φ90mm- φ115mm |
| Drill pipe length | 3000mm |
| Maximum drilling depth | 25 meters |
| Fuel tank capacity | 100L |
| Hydraulic oil tank capacity | 240L |
| Maximum power of diesel engine | 73.5kw |
| Overall weight | 7500kg |
| Drilling arm | |
| Drill arm pitch angle | 23°/58° |
| Drill arm swing angle | 30° left / 30° right |
| Sliding frame compensation | 800mm |
| Sliding frame swing angle | left 95°/right 10° |
| Gas consumption system | |
| Flow rate | 12~21m ³/ Min |
| Pressure | 1~2.4Mpa |
