Mining Down The Hole Drilling Machine Hydraulic Crawler Type

Mining Down The Hole Drilling Machine Hydraulic Crawler Type

Mining down the hole drilling machine

down the hole drilling machine Hydraulic

dth drilling Crawler Type

Place of Origin:

China

Brand Name:

zuanshen

Certification:

ISO9001

Model Number:

ZK70

Contact Us
Request A Quote
Product Details
Product Name:
Hydraulic Crawler Type Mining Drilling Rig And Dth Drilling Machine Used In Open Pit Mine
Overall Dimensions (L*W*Ht):
6710 * 2300 * 2600mm
Drilling Diameter:
Φ90mm- Φ115mm
Drill Pipe Length:
3000mm
Maximum Power Of Diesel Engine:
73.5kw
Hydraulic Oil Tank Capacity:
250L
Overall Weight:
7500kg
Color:
Yellow
Advantage:
Customized
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD
Packaging Details
Nude or as per customer's requirement.
Delivery Time
3-5 work days
Payment Terms
T/T
Supply Ability
5 sets per month
Product Description

Hydraulic Crawler Type Mining Drilling Rig And Dth Drilling Machine Used In Open Pit Mine

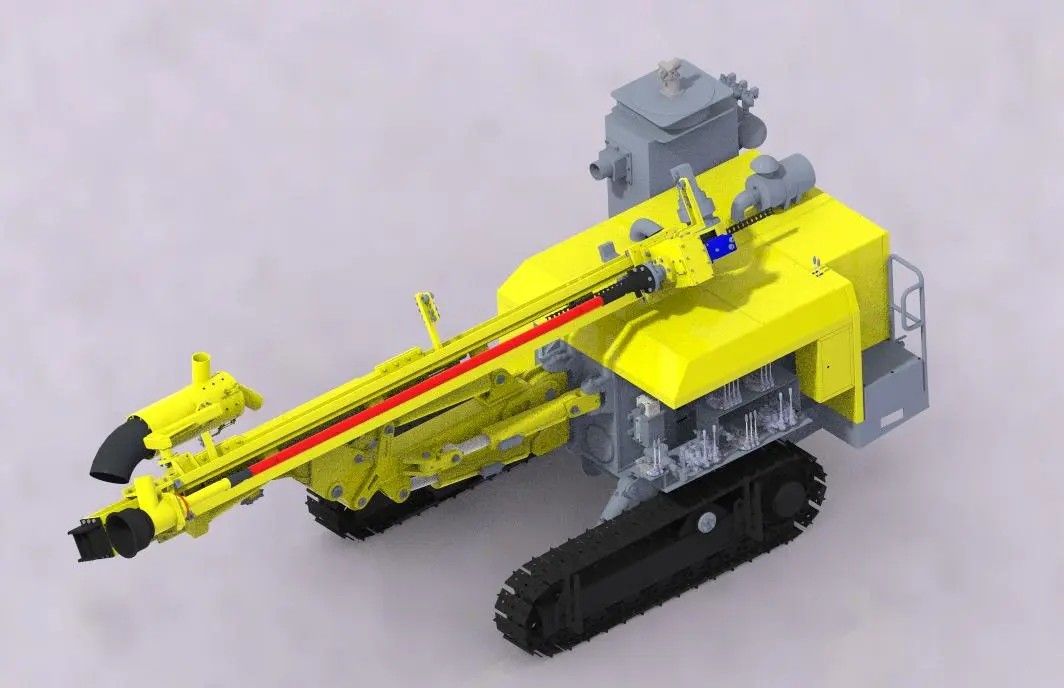

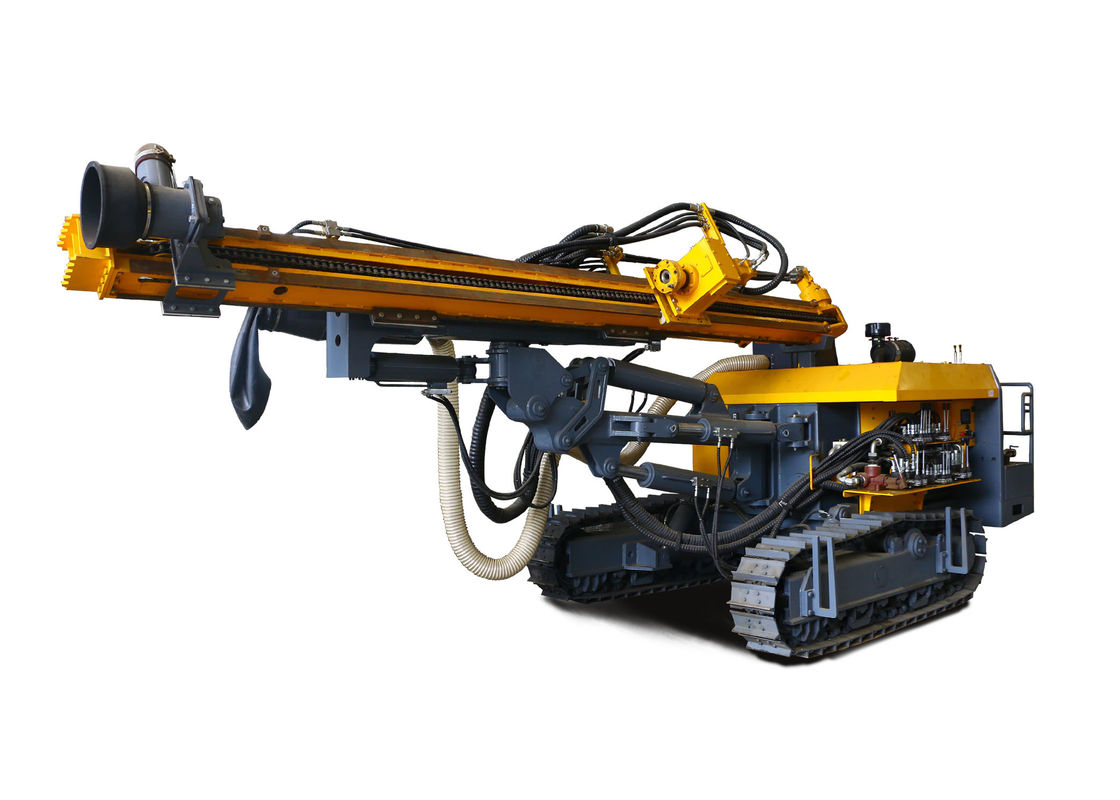

Zk70 open-pit down hole drilling rig

It is a small and medium-sized open-pit down-hole equipment independently researched, developed, and manufactured by our company. It is mainly suitable for blasting hole operations required for open-pit engineering in fields such as mining, quarrying, hydropower, railways, highways, etc. The machine has the characteristics of compact structure, low center of gravity, flexible mobility, and stable operation;



It adopts a sturdy and reliable crawler drive for walking, with excellent off-road climbing performance. The drilling rig uses hydraulic oil to drive the motor and boom, and compressed air to drive the impactor, working together to complete efficient drilling operations.



Product advtantages:

Adaptation range

The whole machine is flexible, with a sturdy and reliable crawler chassis and high-performance walking motors. The addition of a track swing device is suitable for various complex terrains;

High security

Equipped with an efficient dust removal and filtration system, with strong suction, large air volume, and strong dust removal ability, it greatly improves the construction environment and achieves green mining;

High work efficiency

The high-strength increased chain, combined with a high torque hydraulic motor, provides reliable propulsion and lifting support during the drilling process;

Accurate drilling reduces the occurrence of leakage and deviation during construction, significantly improving the integrity of blasting;

Operating platform

Ensure that the operator has a good field of vision, a simple and convenient hydraulic control console, allowing the operator to get started faster and improve work efficiency;



Technical specifications



ZK70 Hydraulic Crawler Type Mining Drilling Rig And Dth Drilling Machine Used In Open Pit Mine
Overall dimensions (L*W*H) 6710 * 2300 * 2600mm
Drill hole diameter φ90mm- φ115mm
Drill pipe length 3000mm
Maximum drilling depth 25 meters
Fuel tank capacity 100L
Hydraulic oil tank capacity 240L
Maximum power of diesel engine 73.5kw
Overall weight 7500kg
Drilling arm
Drill arm pitch angle 23°/58°
Drill arm swing angle 30° left / 30° right
Sliding frame compensation 800mm
Sliding frame swing angle left 95°/right 10°
Gas consumption system
Flow rate 12~21m ³/ Min
Pressure 1~2.4Mpa
