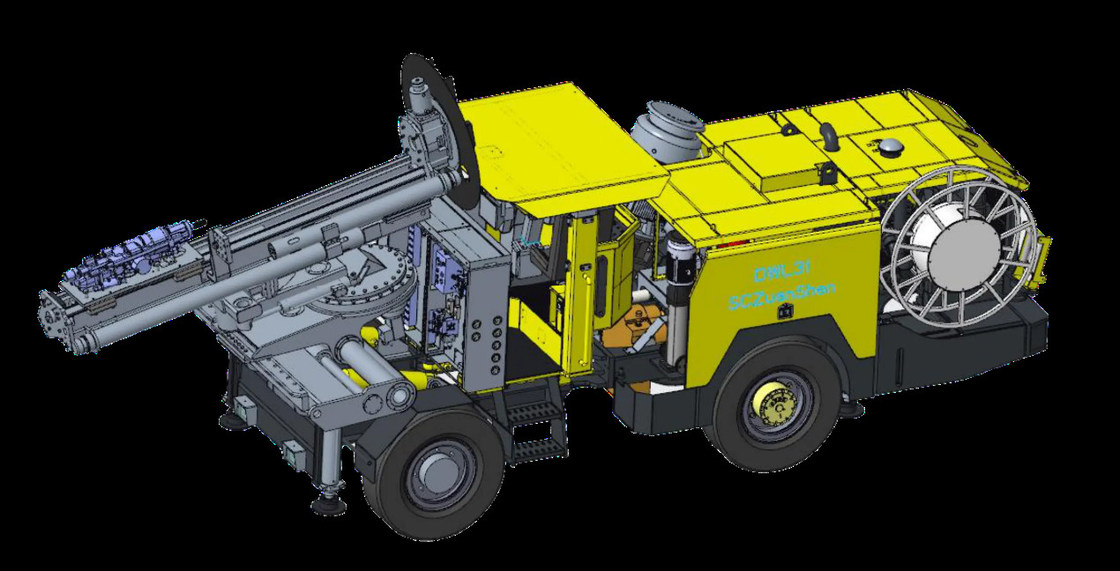

Hydraulic Top Hammer Longhole Drill Rigs And Mining Drilling Equipment Used In Underground Mine
Introduction:
It is a medium-sized hydraulic mining trolley (also known as deep hole mining drilling rig) used for underground mining drilling. The specially designed positioning mechanism is sturdy and stable, with a flat drilling coverage area, ensuring precise positioning and stable support of the propulsion beam, and ensuring high-quality drilling. The compact layout design of the trolley brings good visibility and stability. A good operating environment and optional automatic functions enable operators to concentrate more on safe, fast, and accurate drilling operations.
Product Advantages:
Characteristic
Adaptation range
Suitable for deep hole rock drilling in segmented mining without bottom pillars, it can improve mining efficiency and reduce mining costs;
High security
Compact structure, providing safe and reliable protection for operators during construction;
High work efficiency
Powerful hydraulic rock drill and stability control function, achieving safe, fast, and accurate drilling;
Operating platform
Ensure that the operator has a good field of vision and a simple and convenient hydraulic control console, allowing the operator to get started faster and improve work efficiency;
Product parameter
| CYTC76 Hydraulic Top Hammer Longhole Drill Rigs And Mining Drilling Equipment Used In Underground Mine | |
| Overall dimensions (L*W*H) | 7167*1810*3355mm |
| Applicable cross-section (b*h) | 5800*4900mm |
| Drilling diameter | φ64- φ89mm |
| The length of the mast | 3420mm |
| Drill pipe length | 1525mm |
| Motor power | 55 kW |
| Hydraulic oil tank capacity | 170L |
| Whole machine weight | 15000 kg |
| Drilling arm | |
| Impact power | 18 kW |
| Flip(downward/upward) | 77°/20° |
| Left and right swing angle | ±45° |
| Travel compensation | 1100mm |
| Horizontal extension length | 1150mm |
| Chassis | |
| Maximum power of diesel engine | 60 kW |
| Turning direction | ±40° |
| Rear axle swing angle | ± 7 ° |
| Approach angle/Departure angle | Approach angle 17 °/Departure angle 15 ° |
| Walking speed | >10km/h |
| Ground clearance | 280mm |
| Fuel tank | 75L |
| Electrical system | |
| Total power of motor | 60.7 (55+2.2+3.5) kW |
| Power supply voltage | 380v |
| Motor speed | 1480r/min |
| Battery | 2*12/120v/Ah |
| Driving light | 24V |
| Working light | 220V |
| Gas supply system | |
| Flow rate | 0.36m ³/ Min |
| Working air pressure | 0.2~0.8Mpa |
| Water supply system | |
| Flow rate | 35L/min |
| Working water pressure | 0.8~1.2Mpa |
