Underground Mining Equipment Tunneling Rock Bolt Machine Fully Hydraulic Used For Tunnel Construction

Underground Mining Equipment Tunneling Rock Bolt Machine Fully Hydraulic Used For Tunnel Construction

Underground Mining Tunneling Rock Bolt Machine

Fully Hydraulic Tunneling Rock Bolt Machine

Tunnel Construction Tunneling Rock Bolt Machine

Place of Origin:

China

Brand Name:

zuanshen

Certification:

ISO9001

Model Number:

DW551

Contact Us
Request A Quote
Product Details
Product Name:
Tunneling Jumbos
Overall Dimensions:
14330*2180 *2380/3080mm
Applicable Section Of Anchor Rod:
10 * 7.5m
Drilling Diameter:
Φ43mm- Φ89mm
Drill Hole Depth:
0-12m
Motor Power:
55kw
Overall Weight::
14500kg
Walking Type:
Tyre
Color:
Yellow
Advantage:
Customized
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD
Packaging Details
Nude or as per customer's requirement.
Delivery Time
3-5 work days
Supply Ability
5 sets per month
Product Description

Fully Hydraulic Rock Drilling System And Tunneling Jumbos Used For Tunnel Construction



DW551 is a small and medium-sized hydraulic rock drilling equipment independently researched, developed, and manufactured by our company. It is mainly suitable for excavation and construction operations in tunnels, mining, hydropower, railway, highway, and other fields; It adopts an advanced fully hydraulic rock drilling system, equipped with an anti jamming device. It has a compact structure, and the drilling arm is extendable. It can perform multi angle and multi-directional drilling positioning relatively parallel to the working section. The climbing ability is ≤15%, the walking speed can reach 12km/h, moving speed is fast. It is an excellent underground mining and tunnel excavation mechanized drilling equipment.

Technical specifications



DW551 Fully Hydraulic Rock Drilling System And Tunneling Jumbos Used For Tunnel Construction
Complete machine
Overall dimensions (L*W*H)14330*2180*2380/3080mm
Applicable section of anchor rod (b * h)16*10.4m
Applicable section for excavation (b * h)10*7.5m
Drilling diameterΦ43mm-Φ89mm
Drill pipe length3700/4305/4915mm
Drill hole depth3300/3900/4570mm
Motor power55kw
Hydraulic oil tank capacity250L
Overall weight14500kg
Drilling arm
RotationPositive 135°/Negative 225°
Propulsion downward/upward3°/90°
Compensation1500mm
Chassis
Maximum power of diesel engine100HP/74kw
Turning direction±40°
Tire specifications12.0*R20
Climbing ability≤15%
Rear axle swing angle±7°
Approach angle/departure angle18°/16°
Walking speed12 km/h on horizontal road
Minimum turning radiusInside 3.3m/Outside 6.95m
Minimum ground clearance275mm
Driving brakewet brake
Fuel tank110L
Electrical system
Total power61kw
Voltage380v
Battery2*12v
Driving light24v
Work light220v
Gas supply system
Flow rate0.36m³/min
Working air pressure0.7Mpa
Water supply system
Flow rate70L/min
Working water pressure0.8-1.5Mpa



Product advantage

Wide construction scope
The drilling arm can rotate 360°during propulsion, and the drilling arm with translational propulsion can drill holes in all directions, no dead angle;

High security
It has excellent power system, greatly improves the construction environment, and achieves green construction;

High work efficiency
The high-strength chain, combined with a high torque hydraulic motor, provides reliable pushing and pulling support during the drilling process; Accurate drilling reduces the occurrence of leakage and deviation during construction, significantly improving the blasting effect;

Operating platform
Ensure that the operator has a good field of vision, simple and convenient hydraulic control console, allowing the operator to operate easier and improve work efficiency;

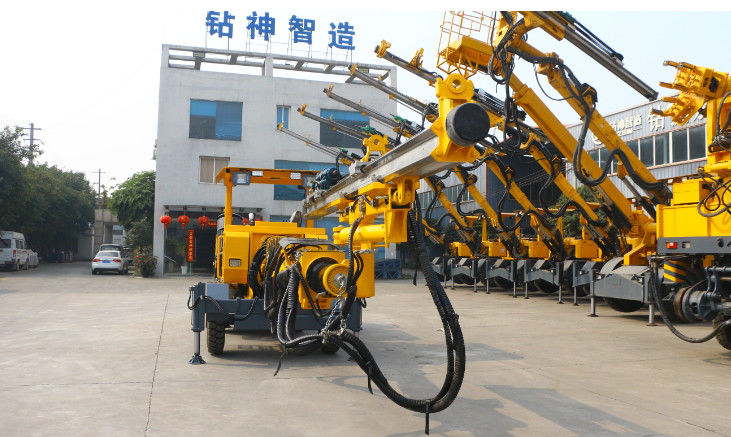

Underground Mining Equipment Tunneling Rock Bolt Machine Fully Hydraulic Used For Tunnel Construction 0
